DIN workpiece clamping chuck 3205-200

for turning applicationsstandardworkpiece

Overview

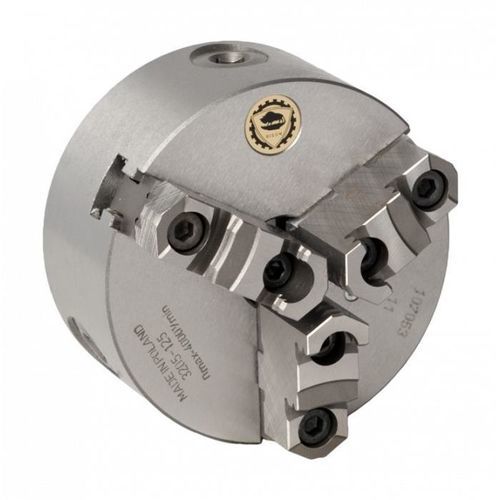

3-jaw self-centering scroll chuck, model 3205-200. Body in cast iron, plain back mount (DIN 6350), size 200 mm. Designed for standard turning operations with through-hole for bar feeding.

Details
Product type: 3205-200
Size: 200 mm
Number of jaws: 3
Type of jaws: 2-piece jaws (hard 2-piece jaws option)
Mounting: Plain back mount (DIN 6350)
Measurement unit: metric (mm)
Body material: Cast iron
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No

Product Attachments

• Catalogue page
• Technical data
• Instruction Manual

Technical specifications

• Model / Product type: 3205-200
• Size: 200 mm
• Number of jaws: 3
• Type of jaws: 2-piece jaws (hard 2-piece jaws option)
• Mounting: Plain back mount (DIN 6350)
• Measurement unit: metric (mm)
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
• SKU (product code on page): 353205050100
• Internal SKU: 353205590301
• SKU USA: 7-800-2000
