Workpiece clamping chuck for turning applications 4344-200-6 8"-5

standardworkpiece4-jaw

Overview

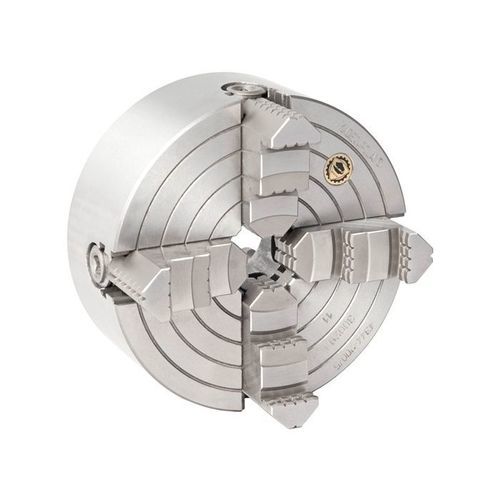

Independent 4-jaw chuck in cast iron with individually adjustable solid jaws. Part of the 4344 series; available as 4344-200-6 (200 mm, taper 6) and 4344-8"-5 (8", taper 5). D-type mounting (DIN 55029). Through-hole supports bar feeding. Accuracy class: standard.

Applications
Suitable for industrial lathe turning and general workholding of shafts and cylindrical components. Solid and hardened jaw options allow adaptation to various diameters and materials.

Attachments

• Catalog page (754.95 kB)
• Technical data (830.88 kB)
• User manual (8.49 MB)

Technical specifications

• SKU (manufacturer): 354344080001
• SKU USA: 7-853-0836 (4344-200-6); 7-853-0835 (4344-8"-5)
• Product types: 4344-200-6; 4344-8"-5
• Sizes: 200 mm; 8"
• Number of jaws: 4
• Type of jaws: Solid jaws; Hardened solid jaws
• Mounting: Type D mount (DIN 55029)
• Measurement units: metric and imperial
• Tapers: 6 (200 mm model); 5 (8" model)
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes (supports bar feed)
• Increased clamping force: No
• Chucks with large through-hole: No
