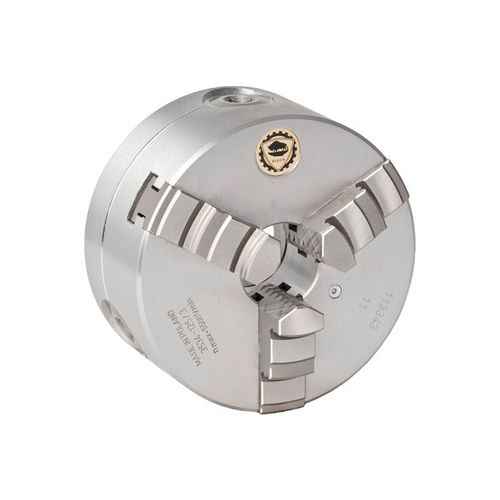

DIN workpiece clamping chuck 3534-160-4

standardfor CNC machinesself-centering

Overview
3-jaw self-centering scroll chuck in steel, with Type C mounting according to DIN 55027. Designed for conventional and CNC lathes; provides a through-hole for bar feeding. Accuracy: standard. Taper: 4. Size: Ø160.

Key features

• Number of jaws: 3
• Type of jaws: Solid jaws / Hard solid jaws
• Mounting: Type C mount (DIN 55027)
• Body material: Steel
• Size (diameter): 160 mm
• Taper: 4
• Through-hole: Yes
• Measurement unit: metric
• Accuracy class: Standard
• Increased clamping force: No
• Chucks with large through-hole: No

Product attachments

• Catalogue page
• Technical data
• Instruction Manual

Technical specifications

• Model / Product type: 3534-160-4
• SKU (internal): 353534600000
• SKU USA: 7-828-0654
• Promo: No
• Size (diameter): 160
• Number of jaws: 3
• Type of jaws: Solid jaws / Hard solid jaws
• Mounting: Type C mount (DIN 55027)
• Measurement unit: metric
• Taper: 4
• Body material: Steel
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
