Workpiece clamping chuck for turning applications 3275-125

standardfront clampingself-centering

Overview

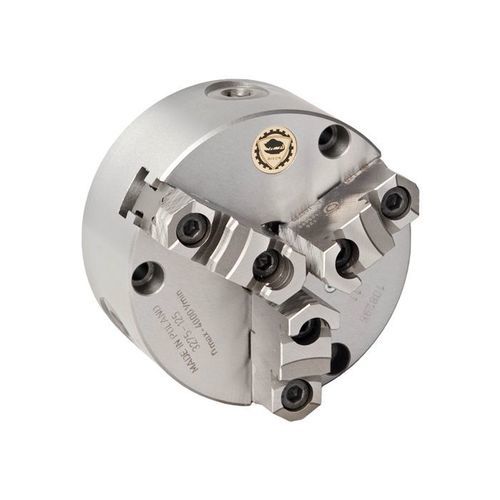

3-jaw self-centering scroll chuck, model 3275-125, 125 mm nominal size, cast iron body, front mounting with plain back (DIN 6350). Fitted with hardened 2-piece jaws and a through-hole for bar feeding. Metric measurement system; standard accuracy class; no increased clamping force.

Key specifications

• Model / product type: 3275-125
• Size: 125 mm
• Number of jaws: 3
• Type of jaws: Hardened 2-piece jaws
• Body material: Cast iron
• Mounting: Front mounting with plain back (DIN 6350)
• Measurement system: Metric
• Accuracy class: Standard
• Through-hole: Yes (bar feeding)
• Increased clamping force: No
• Chucks with large through-hole: No

Applications
Designed for turning and general metalworking operations that require concentric clamping of round workpieces. The through-hole enables bar feeding and machining of long shafts. Suitable for industrial machining environments and production turning cells.

Ordering information
Model: 3275-125. Verify compatibility of the front mounting (DIN 6350) with your spindle and specify required jaw sets or accessories when ordering.
