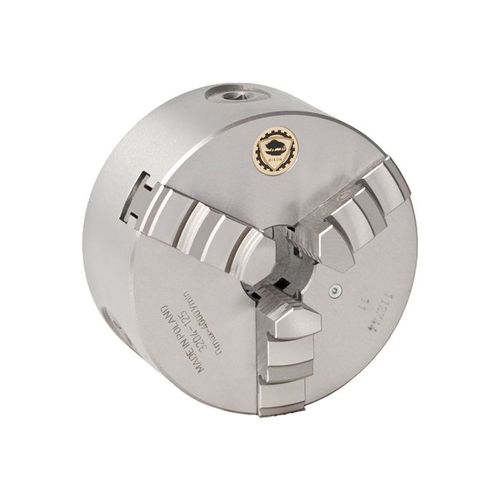

DIN workpiece clamping chuck 3204-100

for turning applicationsrear clampingself-centering

Product description
3-jaw self-centering scroll chuck for lathes and turning centres. Cast iron body (DIN 6350) provides stable clamping for general turning operations. Through-hole allows bar feed and machining of long workpieces.

More information

• Promo: No
• Size: 100 mm
• Product type: 3204-100
• Number of jaws: 3
• Type of jaws: Solid jaws; Hard solid jaws
• Mounting: Plain back mount (DIN 6350)
• Measurement unit: Metric
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No

Product attachments

• Catalogue page (741.23 kB)
• Technical data (830.88 kB)
• Instruction manual (8.49 MB)

Technical specifications

• SKU: 353204560001
• Product type / Model: 3204-100
• Size: 100 mm
• Number of jaws: 3
• Jaws: Solid; Hardened solid
• Mounting: Plain back mount (DIN 6350)
• Measurement unit: Metric
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
