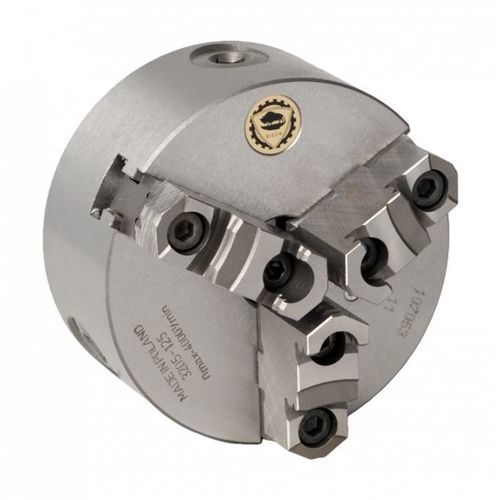

DIN workpiece clamping chuck 3205-160

for finishingfor turning applicationsfor CNC machines

Overview
Three-jaw self-centering scroll chuck engineered for lathe applications. Cast iron body fitted with hardened two-piece jaws. Plain back mounting compatible with DIN 6350. Standard accuracy class and through-hole for bar feeding. Size: 160 mm.

Key features

• 3 jaws with hardened 2-piece design for repeatable gripping
• Cast iron body for stable clamping performance
• Plain back mount (DIN 6350) for direct spindle attachment
• Through-hole (for bar feeding)
• Standard accuracy class

Applications

• Turning on conventional and CNC lathes
• Bar-fed turning operations using the through-hole
• Holding round and cylindrical workpieces for roughing and finishing

Technical specifications

• Brand: BISON
• Model: 3205-160
• SKU: 353205040000
• Size: 160 mm
• Product type: 3205-160
• Number of jaws: 3
• Type of jaws: Hard 2-piece jaws
• Mounting: Plain back mount (DIN 6350)
• Measurement unit: metric
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
• Price (Excl. VAT): €760.00

Ordering information
Order reference: product type 3205-160. Specify SKU when requesting a quote or spare jaws. Verify spindle nose compatibility with DIN 6350 before ordering.
