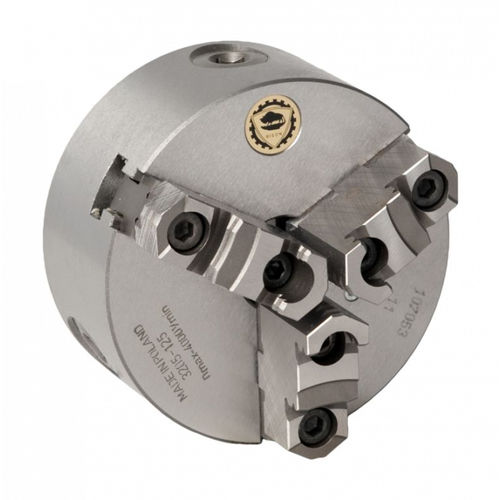

DIN workpiece clamping chuck 3205-5

for turning applicationsstandardself-centering

Overview
3-jaw self-centering scroll chuck in cast iron, manufactured to DIN 6350. Suitable for general lathe turning operations requiring standard accuracy. Size: 5" (127 mm).

More Information
Sku USA: 7-800-0500
Promo: No
Size: 5" (127 mm)
Product type: 3205-5
Number of jaws: 3
Type of jaws: Hard 2-piece jaws
Mounting: Plain back mount (DIN 6350)
Measurement unit: inch
Body material: Cast iron
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No

Technical specifications

• Design: 3-jaw self-centering scroll chuck
• Material (body): Cast iron
• Mounting: Plain back mount (DIN 6350)
• Size (diameter): 5" (127 mm)
• Product type / Model: 3205-5
• Number of jaws: 3
• Type of jaws: Hard 2-piece jaws
• Measurement unit: inch
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
• Sku USA: 7-800-0500
