Taper shank workpiece clamping chuck 4344-20"-11for turning applications4-jaw
Add to favorites
Compare this product
Characteristics
- Clamping method
- taper shank
- Application
- for turning applications
- Number of jaws
- 4-jaw
- Clamping range
20 in
Description
Overview

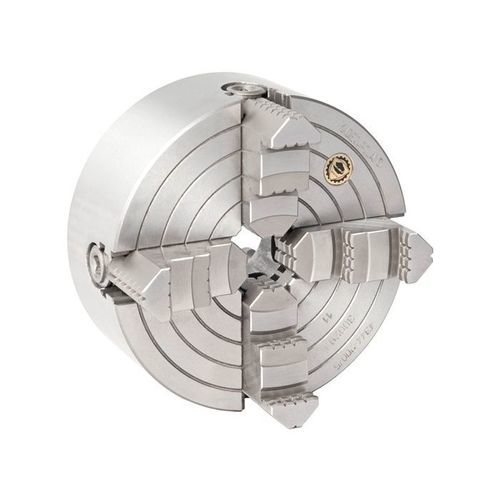

4-jaw cast iron chuck with individually adjustable (independent) jaws for lathe mounting. Type D mount (DIN 55029), size 20" and taper 11. Hardened solid jaws and through-hole allow bar feeding; accuracy class: standard. Suitable for clamping irregular, square or eccentric workpieces requiring independent jaw adjustment.
Product attachments
Product details
Technical specifications
4-jaw cast iron chuck with individually adjustable (independent) jaws for lathe mounting. Type D mount (DIN 55029), size 20" and taper 11. Hardened solid jaws and through-hole allow bar feeding; accuracy class: standard. Suitable for clamping irregular, square or eccentric workpieces requiring independent jaw adjustment.
Product attachments
- Catalog page (754.95 kB)
- Technical data (830.88 kB)
- User manual (8.49 MB)
Product details
- Model: 4344-20"-11
- Size: 20"
- Number of jaws: 4
- Type of jaws: Solid jaws; hardened solid jaws
- Mounting: Type D mount (DIN 55029)
- Measurement unit: inch
- Taper: 11
- Body material: Cast iron
- Accuracy class: Standard
- Through-hole: Yes
- Increased clamping force: No
- Chucks with large through-hole: No
- SKU: 354344210901
- SKU USA: 7-853-2039
- Promo: No
Technical specifications
- SKU: 354344210901
- SKU USA: 7-853-2039
- Price (amount): 5897
- Currency: USD
- Model / Reference: 4344-20"-11
- Size: 20"
- Number of jaws: 4
- Mounting: Type D (DIN 55029)
- Body material: Cast iron
- Taper: 11
- Through-hole: Yes
- Accuracy class: Standard
