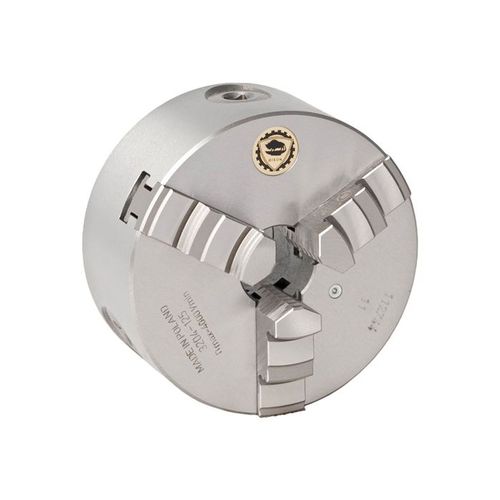

DIN workpiece clamping chuck 3204-630

for turning applicationsstandardself-centering

Short description
3-jaw self-centering scroll chuck for lathes, cast iron body (DIN 6350), through-hole available.

Overview
Designed for general turning applications on lathes. Cast iron construction according to DIN 6350 provides geometric stability for standard accuracy class. Plain back mounting (DIN 6350) and through-hole option enable bar feeding and flexible machining setups. Supplied with solid hardened jaws for consistent clamping.

Product attributes
SKU: 353204100500
Promo: No
Size: Ø630 mm
Product type: 3204-630
Number of jaws: 3 (self-centering scroll)
Type of jaws: solid; hardened solid jaws
Mounting: Plain back mount (DIN 6350)
Body material: Cast iron
Measurement unit: metric
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No
Price (Excl. VAT): 9,060.00 EUR

Documents available on the page (titles only)
Catalogue page
Technical data
Instruction manual

Technical specifications

• Model / Product type: 3204-630
• SKU: 353204100500
• Body material: Cast iron
• Mounting: Plain back mount (DIN 6350)
• Number of jaws: 3 (self-centering scroll)
• Jaws: solid; hardened solid jaws
• Size: Ø630 mm
• Measurement unit: metric
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
• Price (Excl. VAT): 9,060.00 EUR
