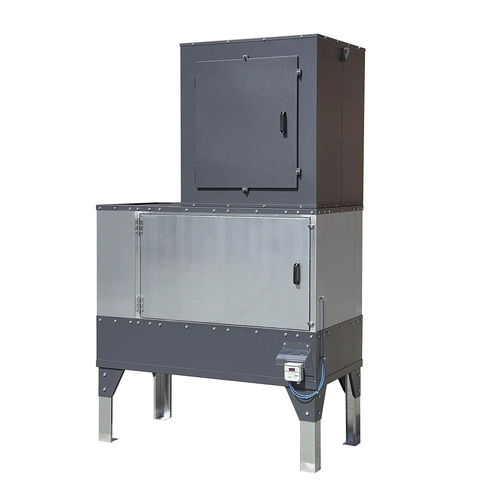

Cartridge filtration unit AIRSOL OIL series

for oilcompactcentralized

- Centralized plants for filtration of emulsified oil mists - Centralized plants serving machine tools, CNCs, lathes, cutters and other machines with cooling liquid - Filtration of oil mists and emulsion mists on a drill, milling machine, boring machine, lathe, surface grinding machine, planer, shaper, slotting machine, grinding wheel, broaching machine Technical features of the filter units for oil mists AIRSOL OIL: - 2 models: AIRSOL OIL E, Compact filter only; AIRSOL OIL T, Compact filter with fan, box of soundproofing and control panel - Sturdy construction in galvanized sheet and painted sheet - Calming air chamber with liquid collection tank and drain siphon - Filter holder frame with condensate drain system - 3-stage filtration: droplet separator, metal pre-filtration, final filter: Compact multipleat class F6 or higher (EN 779) - Additional filtration stage with HEPA filter, H13 class (optional) - Inspection hatch - Sealing and locking system of filters with eccentric bar - Modularity of the Airsol system: the filters can be combined in parallel to achieve very high flow rates
