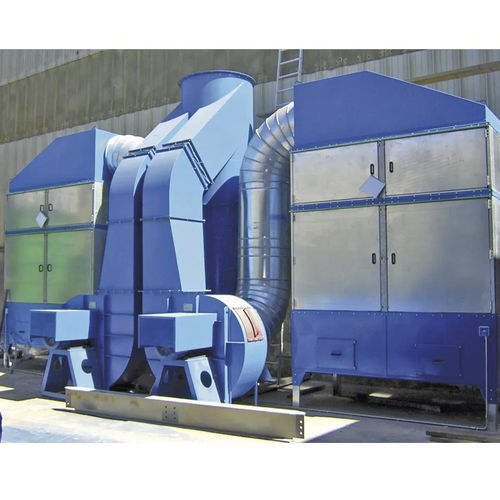

Paint filtration unit AIRSOL DRY series

cartridgemodularHEPA

- Plants for the treatment of effluents from painting operations - Treatment of the expulsion air of the painting areas, to stop the solid part of the overspray - Prefiltration in systems with subsequent filtration stages that must be protected from dust pollution (for example activated carbon filters) Technical features of filter units for painting AIRSOL DRY: - Sturdy construction in galvanized sheet and painted sheet - Calming air chamber with inspection hatch - AIRSOL DRY D: filtration with Paint Stop with cardboard (DRY D) or metal frame (DRY DZ) - AIRSOL DRY DT: first filtration stage with Paint Stop with cardboard (DRY DT) or metal frame (DRY DTZ); second filtration stage with class F7 pocket filter (EN 779) - Additional filtration stage with HEPA filter, H13 class (optional) - Inspection hatch - Modularity of the AIRSOL system: the filters can be combined in parallel to achieve very high flow rates
