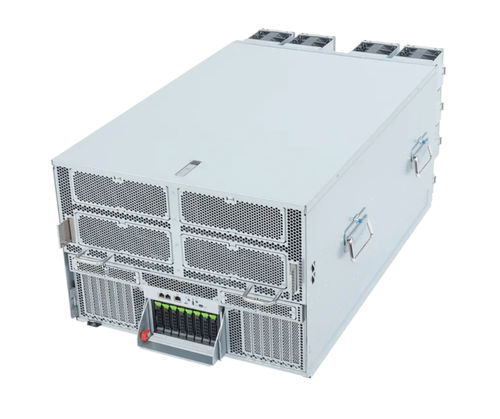

Storage server TO86-SX1-AA04

networkcalculationGPU

Product Family
ORV3 GPU Server - Intel® Xeon® 6700/6500 - 8OU DP AMD Instinct™ MI355X

Highlights

• 8 x AMD Instinct™ MI355X OAM GPUs
• Dual Intel® Xeon® 6700/6500-Series processors (dual-socket)
• 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs (up to RDIMM 6400 MT/s 1DPC / MRDIMM up to 8000 MT/s on select SKUs)
• 2 x 10 Gb/s LAN ports (Intel® X710-AT2) plus 1 x 10/100/1000 Mb/s management LAN
• 1 x M.2 PCIe Gen5 x4 (2280/22110)
• 8 x 2.5" Gen5 NVMe hot-swap front bays
• 12 x FHHL PCIe Gen5 x16 expansion (from PEX89104 / PEX89048)
• 48 V to 54 V DC bus bar power solution (OCP bus-bar power architecture)

Key Technologies & Platform Benefits

• OCP ORV3 / Open Rack V3 compliant design enabling rack-level power bus-bar architecture and centralized PSU approach
• Designed for high-density GPU compute (ORV3 GPU server architecture with modular GPU OAM trays)
• Support for Intel Xeon 6 platform features: P-cores and E-cores, PCIe 5.0, CXL 2.0 (per SKU/QVL), MRDIMM support (select SKUs)
• Thermal and serviceability optimizations for cold-aisle/hot-aisle rack designs (front access maintenance, tool-less replacements)
• GIGABYTE server management and features for efficient administration and continuous operation

Included / Ordering

• Ordering number (barebone with AMD module): 6NTO86SX1UR000AA04*
• Motherboard part number: 9MSJ4GD0DR-000*
• Backplane board: 9CBPG086NR-00*
• I/O board options: 9COFP332NR-00* / 9COFP340NR-00*

Additional Notes

• MRDIMM support and memory frequencies depend on specific Intel® Xeon® 6 CPU SKUs (MRDIMMs supported only on select P-core SKUs, 1DPC configuration)
• CXL peripheral support varies by product and must be validated per QVL
• Some PCIe or memory functions may be unavailable if only one CPU is installed

Caractéristiques / spécifications techniques

• Model name: TO86-SX1-AA04
• Brand: GIGABYTE
• Dimensions (WxHxD, mm): 537 x 380.5 x 853 (8OU)
• Motherboard: MSJ4-GD0
• CPU: Dual Intel® Xeon® 6700-Series or 6500-Series Processors; Dual-processor, TDP up to 350 W (If only 1 CPU installed some PCIe or memory functions may be unavailable)
• Socket: 2 x LGA 4710 (Socket E2)
• Chipset: System on Chip
• Memory: 32 x DIMM slots; Support DDR5 RDIMM / MRDIMM; 8-channel memory per processor; RDIMM: up to 6400 MT/s (1DPC), 5200 MT/s (2DPC); MRDIMM: up to 8000 MT/s (select SKUs)
• LAN: Front I/O board: 2 x 10 Gb/s LAN (Intel® X710-AT2) with NCSI support; 1 x 10/100/1000 Mb/s management LAN
• Video: Integrated ASPEED AST2600 (1 x Mini-DP)
• Storage: Front hot-swap: 8 x 2.5" Gen5 NVMe (NVMe from PEX89104); Internal M.2: 1 x M.2 (2280/22110) PCIe Gen5 x4 from CPU_1
• Modular GPU: 8 x AMD Instinct™ MI355X OAM GPUs
• PCIe Expansion Slots: 8 x FHHL x16 (Gen5 x16) from PEX89104; 4 x FHHL x16 (Gen5 x16) from PEX89048
• Front I/O (I/O board): 1 x USB 3.2 Gen1 (Type-C); 1 x Micro USB for BMC UART; 1 x Mini-DP; 2 x RJ45; 1 x MLAN; Power button w/ LED; ID button w/ LED; Reset button; System status LED
• Security Modules: 1 x TPM header (SPI) - optional TPM 2.0 kit CTM010; 1 x PRoT connector (enabled on RoT SKU only)
• System Fans: Motherboard: 4 x 92x92x38 mm; GPU tray: 12 x 92x92x76 mm
• Operating Properties: Operating temperature 10°C to 35°C; operating humidity 8% to 80% (non-condensing); non-operating temperature -40°C to 60°C; non-operating humidity 20% to 95% (non-condensing)
• Packaging Dimensions: 1300 x 800 x 650 mm
• Packaging Content: 1 x TO86-SX1-AA04; 2 x CPU heatsinks; 4 x carriers
• Part Numbers: Barebone with AMD module: 6NTO86SX1UR000AA04*; Motherboard: 9MSJ4GD0DR-000*; Backplane CBPG086: 9CBPG086NR-00*; I/O boards: 9COFP332NR-00*, 9COFP340NR-00*
