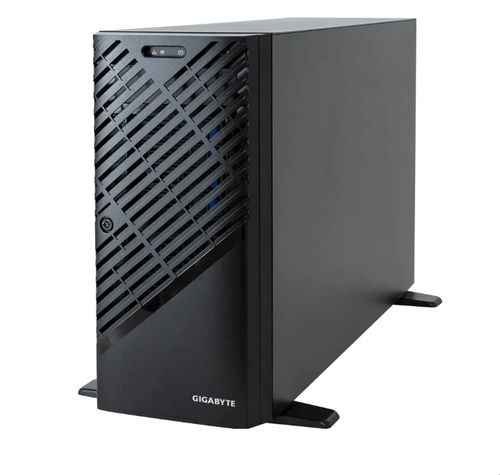

GPU computer workstation W773-H5D-AAF1

towerAMD Ryzen™ ThreadripperVGA

Overview
GPU workstation engineered for professional compute, visualization and AI workloads. Supports single-socket AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series processors on sTR5, validated multi-GPU configurations and a high-capacity 2500 W ATX power supply for sustained accelerator performance.

Key Highlights

• Supports up to 4 x dual-slot PCIe Gen5 GPUs (multiple validated workstation-class accelerator configurations)
• Single AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series processor, socket sTR5
• 8-channel DDR5 RDIMM memory with 8 DIMM slots
• AMD WRX90 chipset
• Dual 10 Gb/s LAN (Broadcom® BCM57416) plus dedicated 1 GbE management LAN
• Four onboard M.2 PCIe Gen5 x4 slots and front hot-swap SATA bays; NVMe/SAS/RAID support
• Six PCIe Gen5 x16 expansion slots and additional PCIe/M.2 for peripherals
• Single 2500 W ATX 80 PLUS Platinum power supply

Storage & Expansion

• Internal: 4 x M.2 (2280/22110) PCIe Gen5 x4 (from CPU)
• Front hot-swap: 4 x 3.5"/2.5" SATA bays; optional additional 4 x 3.5"/2.5" SATA bays
• Supports NVMe, SAS and RAID levels 0/1/10/5
• PCIe: 6 x PCIe Gen5 x16 slots; 1 x M.2 (2230) E-key (Wi‑Fi) PCIe Gen3 x1 from FCH

Management & Security

• ASPEED® AST2600 BMC with HTML5 KVM for remote console and management
• GIGABYTE Management Console (GSM) supporting IPMI and Redfish for cluster and remote management
• Optional TPM 2.0 header (SPI) for hardware security

Thermal & Design

• Workstation chassis with optimized airflow: selected FAN modules, internal airducts and GPU/CPU airflow channels
• GSM smart fan control and large perforations for heat dissipation

Ordering & Model Information
Ordering Numbers: 6NW773H5DMR000ABF1*
Model: W773-H5D-AAF1 (Rev. 3.x)

Technical Specifications

• Commercial name: W773-H5D-AAF1
• Motherboard: MH53-G40
• CPU: AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series; single socket; TDP up to 350 W
• Socket: 1 x sTR5
• Chipset: AMD WRX90
• Memory: 8 x DIMM slots; DDR5 RDIMM; 8-channel (up to 6400 MT/s for 9000 WX, up to 5200 MT/s for 7000 WX)
• LAN: 2 x 10 Gb/s (1 x Broadcom® BCM57416) with NCSI; 1 x 1 Gb/s management LAN
• Video: ASPEED® AST2600 integrated; 1 x VGA
• Audio: Realtek® ALC897 HD Codec; rear/front audio jacks
• Storage: Front hot-swap 4 x 3.5"/2.5" SATA; optional 4 additional bays; Internal 4 x M.2 PCIe Gen5 x4
• RAID: 0/1/10/5; AMD RAID drivers supported
• PCIe expansion: 6 x PCIe Gen5 x16 slots
• Front I/O: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, audio jacks, power/reset, LEDs
• Rear I/O: 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 3.2 Gen2 Type-A, 1 x VGA, 1 x serial, 2 x RJ45, 1 x MLAN, audio jacks, ID button
• Security: TPM header (SPI); TPM 2.0 kit optional
• Power Supply: Single 2500 W ATX 80 PLUS Platinum; AC input 200-240V~, requires C19 power cord; recommended 220-240V AC
• System Management: AST2600 BMC; GIGABYTE Management Console with HTML5 KVM, sensor monitoring, event logs, fan profiles and remote update
• OS Compatibility: Red Hat Enterprise Linux, Ubuntu, Windows 11
• Fans: Middle 3 x 120x120x38 mm; Rear 1 x 120x120x25 mm
• Dimensions (WxHxD): Pedestal: 218 x 455 x 726.3 mm
• Operating temp: 10°C to 30°C; humidity 8%–80% non‑condensing
• Weight: Net 29.2 kg; Gross 34.4 kg
• Packaging dimensions and contents: 1050 x 417 x 594 mm; includes W773-H5D-AAF1, CPU fansink and listed accessories
