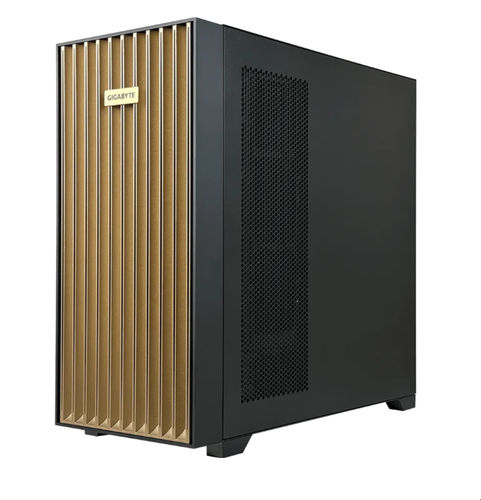

Computer workstation W775-V10-L01

electronic

Overview
The W775-V10-L01 is an AI workstation (deskside) platform featuring the NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip architecture. It is optimized for large-scale AI model development, fine-tuning and inference on the desktop while remaining compatible with NVIDIA's AI software stack and scalable to cloud or data center deployments.

Key features

• Closed-loop liquid cooling solution for the Superchip
• 1 x NVIDIA Blackwell Ultra GPU integrated in the NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip
• 1 x NVIDIA Grace-72 Core Neoverse V2 CPU (part of the GB300 Superchip)
• 252 GB HBM3E GPU memory with 7.1 TB/s total bandwidth
• 496 GB LPDDR5X CPU memory with up to 396 GB/s bandwidth (with ECC)
• High-performance networking: 2 x 400 Gb/s QSFP via NVIDIA ConnectX®-8 SuperNIC
• 1 x 10 Gb/s LAN port (Marvell AQC113) plus a management LAN
• NVLink-C2C coherent chip-to-chip interconnect (GPU ↔ CPU)
• Single 1600 W ATX 80 PLUS Platinum power supply

System integration and expansion

• Internal M.2 storage: 2 x M.2 (2280) PCIe Gen5 x4 (from CPU) and 2 x M.2 (2280) PCIe Gen6 x4 (from ConnectX-8)
• PCIe expansion slots: 1 x PCIe x16 (Gen5 x16), 2 x PCIe x16 (Gen5 x8)
• Front I/O: 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1 Type-A, 2 x audio jacks (audio out/mic), power/reset and activity LEDs
• Rear I/O: 4 x USB 3.2 Gen2 Type-A, 1 x Micro USB (USB-to-UART), 1 x Mini-DP, 2 x QSFP, 1 x RJ45, 1 x MLAN, 2 x Wi‑Fi antenna ports, 3 x audio jacks

Technological breakthroughs

• NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip: integrated Grace CPU and Blackwell Ultra GPU with NVLink-C2C for high-bandwidth coherent transfers
• Fifth-generation Tensor Cores enabling FP4 (4-bit floating point) AI acceleration
• NVIDIA ConnectX-8 SuperNIC providing up to multi-hundred‑Gb/s networking for hyperscale AI workloads
• NVIDIA DGX OS compatibility for a qualified AI software stack, drivers and monitoring tools
• Large coherent memory pool (up to hundreds of GB unified memory) for running massive AI models
• Workload-optimized power-shifting to maximize performance and efficiency depending on active workloads

Block diagram & visual assets
Block diagram and product imagery are provided for system architecture and layout reference (Superchip block diagram, product gallery and micro-site graphics).

Ordering & packaging

• Ordering / part number (barebone): 6NW775V10MR000L01*
• Packaging contents: 1 x W775-V10-L01, 1 x Superchip liquid cooling kit
• Power supply: single 1600 W ATX 80 PLUS Platinum (system requires a C19 power cord; power cord not included)

Notes & disclaimers

• Power cords are not included with server/workstation packages; a C19 power cord is required for the supplied power supply.
• Operating limits: temperature and humidity ranges and coolant inlet temperature constraints for high-humidity operation must be respected to avoid condensation.
• Specifications and materials are subject to change; performance figures are based on theoretical/vendor-specified values and may vary with configuration.

Caractéristiques / spécifications techniques

• Model: W775-V10-L01
• Brand: GIGABYTE
• Superchip: NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip (1 x NVIDIA Grace CPU + 1 x NVIDIA Blackwell Ultra GPU; connected via NVIDIA NVLink™-C2C)
• Dimensions (WxHxD, mm): Pedestal — 245 x 500.4 x 531
• Memory (CPU): 496 GB LPDDR5X with ECC — up to 396 GB/s bandwidth
• Memory (GPU): 252 GB HBM3E — 7.1 TB/s memory bandwidth
• LAN: 2 x 400 Gb/s QSFP (via NVIDIA ConnectX®-8 SuperNIC), 1 x 10 Gb/s LAN (Marvell AQC113), 1 x 10/100/1000 Mb/s management LAN
• Video: Integrated in onboard BMC — 1 x Mini-DP
• Audio: Realtek® ALC4080 codec — Front: 2 x audio jacks (out/mic), Rear: 3 x audio jacks (in/out/mic)
• Storage (internal M.2): 2 x M.2 (2280) PCIe Gen5 x4 (from CPU); 2 x M.2 (2280) PCIe Gen6 x4 (from ConnectX-8)
• PCIe expansion: Slot 1: PCIe x16 (Gen5 x16); Slot 2: PCIe x16 (Gen5 x8); Slot 3: PCIe x16 (Gen5 x8); plus 1 x M.2 (2230) E-key (Wi‑Fi) PCIe Gen2 x1 from ConnectX-8
• Front I/O: 1 x USB 3.2 Gen2 (Type-C), 2 x USB 3.2 Gen1 (Type-A), 2 x audio jacks, power/reset buttons with LEDs
• Rear I/O: 4 x USB 3.2 Gen2 (Type-A), 1 x Micro USB (USB-to-UART), 1 x Mini-DP, 2 x QSFP ports, 1 x RJ45, 1 x MLAN, 2 x Wi‑Fi antenna ports, 3 x audio jacks
• Power Supply: Single 1600 W ATX 80 PLUS Platinum. AC Input: 100–240V~, 15–8A, 47–63Hz. DC Output: Max 1300W (100–240V~) & Max 1600W (115–240V~). DC rails: +12V1–12V6 / 50A, +5V / 25A, +3.3V / 25A, +5Vsb / 3.5A, -12V / 0.3A
• OS compatibility: NVIDIA DGX OS
• System fans: 3 x 120 x 120 x 25 mm
• Operating properties: Operating temperature 10°C to 35°C; operating humidity 8% to 80% (non-condensing). Non-operating: -40°C to 60°C; humidity 20% to 95% (non-condensing). Note: when relative humidity >50%, coolant inlet temperature must be higher than dry-bulb temperature and must not exceed 45°C to avoid condensation.
• Weight: Net 29.2 kg; Gross 34.4 kg
• Packaging dimensions: 732 x 400 x 775 mm
