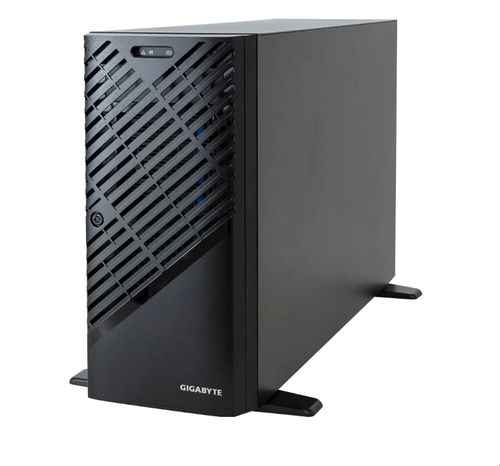

GPU computer workstation W773-H5D-AA01

AMD Ryzen™ ThreadripperVGAPCI Express

Overview

• GPU workstation engineered for AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series (single sTR5 socket)
• Supports up to 4 x dual-slot PCIe Gen5 GPUs and multiple accelerator configurations
• 8-channel DDR5 memory via 8 DIMM slots; up to 6400 MT/s (9000 WX) / 5200 MT/s (7000 WX)
• Single 2000 W ATX 80 PLUS Gold power supply and AMD WRX90 chipset

AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors

• Designed for highly threaded professional workloads: simulation, rendering, generative design, compilation and AI model training
• High core counts, improved IPC and high memory bandwidth to accelerate large-scale compute tasks

Key Highlights

• Zen 5 microarchitecture (9000 series) support
• Up to 96 CPU cores (platform dependent)
• Up to 128 PCIe 5.0 lanes (platform dependent)
• Onboard ASPEED® AST2600 BMC for remote management

Workstation Design

• Chassis optimized for thermal performance with large perforations and iron mesh reinforcement
• Locking provisions to secure hardware and data
• Form factor: pedestal; compact rack-friendly layout for multi-GPU setups

Storage Support

• Front hot-swap: 4 x 3.5"/2.5" SATA bays (standard) plus optional 4 additional hot-swap bays
• Internal M.2: 4 x M.2 (2280/22110) PCIe Gen5 x4 from CPU (NVMe/SAS support requires storage card)
• RAID 0/1/10/5 supported (controller dependent)

Connectivity

• 2 x 10 Gb/s LAN (Broadcom® BCM57416) with NCSI support
• 1 x 1 Gb/s management LAN for out-of-band management
• Front/Rear I/O includes multiple USB Type-C/Type-A, VGA, serial, audio and ID button

Hardware Security

• TPM header (SPI) with optional TPM 2.0 kit available

Power & Cooling

• Single 2000 W ATX 80 PLUS Gold power supply; AC input 100–240 V~ (recommended 220–240 V)
• System fans: 3 x 120x120x38 mm (middle) + 1 x 120x120x25 mm (rear)

Value-added Management

• ASPEED® AST2600 BMC with web-based GIGABYTE Management Console (dashboard, HTML5 KVM, sensor history, FRU, SEL)
• GIGABYTE Server Management (GSM) suite for cluster and fleet management

Product Overview & Use Cases
Validated for compute-intensive applications including AI/deep learning, scientific and government computing, CAD/CAE, simulation, virtualization and content creation. Flexible GPU and storage options enable tailored configurations for enterprise workloads.

Ordering reference
Ordering Numbers: 6NW773H5DMR000AB01*

Technical specifications

• Dimensions (WxHxD, mm): Pedestal 218 x 455 x 726.3
• Motherboard: MH53-G40
• CPU: AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series (single processor, TDP up to 350 W)
• Socket: 1 x sTR5
• Chipset: AMD WRX90
• Memory: 8 x DIMM slots; DDR5 RDIMM; 8-channel; up to 6400 MT/s (9000 WX) / 5200 MT/s (7000 WX)
• LAN: 2 x 10 Gb/s (Broadcom® BCM57416) with NCSI; 1 x 10/100/1000 Mb/s management LAN
• Storage: Front hot-swap 4 x 3.5"/2.5" SATA; optional +4 bays; Internal 4 x M.2 (2280/22110) PCIe Gen5 x4 from CPU
• PCIe Expansion: 6 x PCIe Gen5 x16 slots; 1 x M.2 (2230) E-key for Wi‑Fi (PCIe Gen3 x1)
• Power Supply: Single 2000 W ATX 80 PLUS Gold; requires C19 power cord
• I/O: Front: USB3.2 Gen1 Type-C, USB3.2 Gen1 Type-A, audio jacks; Rear: USB3.2 Gen2x2 Type-C, USB3.2 Gen2 Type-A, VGA, serial, 2x RJ45, MLAN, audio jacks
• Management: AST2600 BMC; GIGABYTE Management Console; GSM suite
• OS Compatibility: Red Hat Enterprise Linux, Ubuntu, Windows 11
• Operating: 10°C to 30°C; humidity 8%–80% non-condensing
• Weight: Net 29.2 kg; Gross 34.4 kg
• Packaging dimensions: 1050 x 417 x 594 mm
• Packaging content: 1 x W773-H5D-AA01; 1 x CPU fansink
