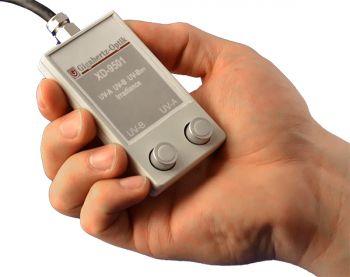

Irradiance detector XD-9501
opticallaboratoryindividual

irradiance detector
irradiance detector
Add to favorites
Compare this product


Characteristics

Detected entity
irradiance
Technology
optical
Application
laboratory
Other characteristics
individual

Description

Ultraviolet radiation is used in the treatment of certain skin diseases like Psoriasis and for photobiological studies like SPF testing. Measuring the source irradiance or energy is required for accurate dosimetry and safety purposes. Typical wavelength ranges of interest are UV-A320-400nm, UV-B280-320nm and UV-B311nm. The two cell XD-9501 detector includes filtered detectors for both the UV-A and UV-B spectral ranges and a cosine corrected field of view. Traceable calibration Calibration of the detector UV-A and UV-B (W/m²) responsivity is performed by the Gigahertz-Optik GmbH calibration laboratory for optical radiation measurements quantities. As with all light detectors supplied by Gigahertz-Optik calibration of absolute detector responsivity as well as detector individual measured relative spectral responsivity data is included.
