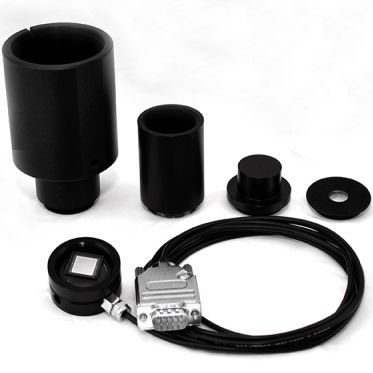

Photometric detector MD-37-SU100-VL

optical

Modular light measurement technology Some photometric application areas require measurement devices that are usually not available in standard versions. For simplified customized solutions, Gigahertz-Optik offers a series of modular components. These can be flexibly combined depending on the various requirements. Photometric module detector The high quality, extensive Si-photodiode of the MD-37-SU100-VL is carefully matched to the photometric DIN and CIE V(λ) nominal curve using a multilayer optical correction filter. The V(λ) matching of the luminous flux measurement head generally corresponds to the DIN-5032-T7 quality class B. Extensive range of accessories with M30x1 connector Numerous accessories which include lens adapter, integrating sphere adapters and UPB and UPK series integrating spheres are offered for the MD-37-SU100-VL module detector with its M30x1 threaded bore. Use with all optometers The detector can be combined with all optometers and light meters from Gigahertz-Optik. Traceable calibration The MD-37-SU100-VL module detector can be calibrated in terms of its absolute illuminance responsivity and relative spectral responsivity. Calibrations for combinations of the detector and the accessories are offered for the corresponding photometric measurands. Calibration is performed by the Gigahertz-Optik calibration laboratory for optical radiation measurands. The calibrations are documented in an individually compiled calibration certificate. The design and contents of the calibration certificate are in accordance with the ISO 17025 specifications.
