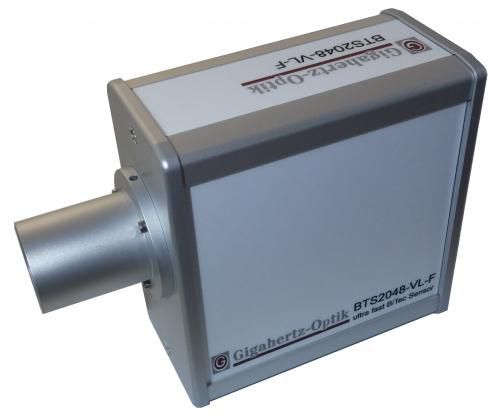

BTS2048-VL-F, CCD spectroradiometer with light guide input
The only difference between the BTS2048-VL-F and the BTS2048-VL is that the BTS2048-VL-F has a light guide input and therefore meets all the requirements of a high-end array spectroradiometer.
Flexible light guides are convenient for applications where the BTS2048-VL cannot be coupled directly to the input accessories required for the application. The BTS2048-VL-F has a mount to which the light guide can be attached easily using a 10 mm sleeve. Light guides of different lengths, diffusor windows for axial or 90° incident light and adapters for attachment of the light guide to an integrating sphere are among the accessories offered by Gigahertz-Optik. Customized light guides are also available on request.
User software and developer software
The standard S-BTS2048 user software has a customizable user interface and a large number of display and function modules which can be activated when configuring the BTS2048-VL-F with the respective accessory components from Gigahertz-Optik GmbH. The S-SDK-BTS2048 developer software is offered for integration of the BTS2048-VL-F in the customer’s own software.
