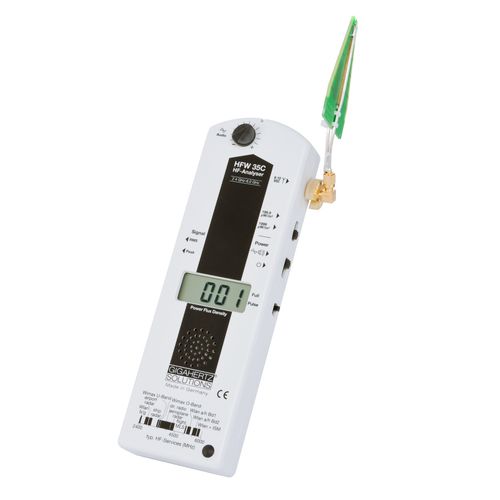

Electromagnetic field measuring instrument HFW35C

digitalindustrialfor building

Supplementary meter to complement the HF analysers HF35C, HFE35C and HF38B, especially for the analysis of the two WLAN/WiFi bands as well as for the area-relevant 5G band between 3.4 and 3.8 GHz. Its scope of functions and equipment is tailored to the practical needs of building biology. Frequency range: 2.4 - 6.0 GHz Description Functionality and equipment similar to the HF35C, however: • Frequency range from 2.4 to 6 GHz. • Especially designed for the analysis of radiation caused by wireless equipment / PC networks (WLAN/WiFi, Bluetooth). Also covers the recently auctioned 5G frequencies. • Includes an especially aligned, patented LogPer antenna with very good directional characteristics. • Suppresses mobile radio and DECT frequencies by means of a steep-edged high-pass filter integrated into the antenna for distortion-free analysis of the frequency range from 2.4 to 6 GHz. Important for a meaningful audio analysis. • Also comprises the function of the professional meters for the quantitative differentiation of pulsed unpulsed radiation according to the building biology recommendations for the frequency range from 2.7 GHz to 6 GHz. Of course, all other advantages of the series are also fulfilled by the HFE35C • It is fully frequency compensated, i.e. no frequency range is overrated, underrated or even ignored. • In addition, our measurement technology always shows the SUM of ALL existing radiation at the place of measurement, not only the strongest signal, as is the case with the cheap - allegedly - very broadband detectors that have been launched on the market in recent years.
