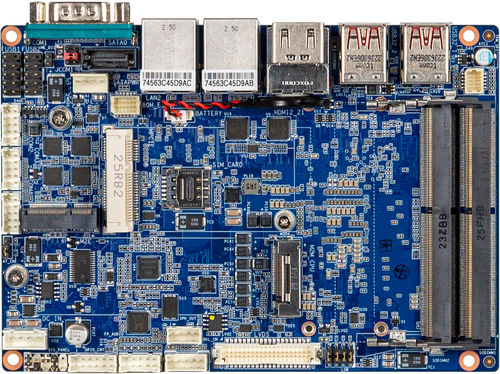

ATX SBC QBiP-1215EA

3.5" SubCompact12th Generation Intel® Core™Intel® Core™ i3-1215UE

3.5” SubCompact Board with 12th Generation Intel® Core™ i3-1215UE Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0 Specification 146W x 101.7D(mm) CPU - Intel® Core™ i3-1215UE Processor 10nm Enhanced Superfin (Intel 7), 6 cores, 8 threads, up to 4.4 GHz TDP 15W Socket - 1 x FCBGA1744 Support Dual Channel DDR4 3200 MHz memory modules Ethernet - 2 x 2.5GbE LAN Ports (Intel® I226V) Video - Integrated Graphics Processor - Intel® UHD Graphics: (3 independent display outputs) Audio - Realtek® Audio Codec Internal I/O - 1 x 4-pin box power connector (DC in +9V~36VDC) 1 x SATA Power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header TPM - 1 x TPM header (SPI) OS Compatibility - Windows 10/11 (x64) Operating Properties - Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) Packing Content - Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.5kg Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) Order Information - 9MADU3ASMR-SI (Box Packing) Optional Kit - Fansink P/N: 25ST4-113104-A7R Fanless sink P/N: 25ST1-113110-A7R Heat spreader P/N: 25ST5-MADU00-Y0R TPM 2.0 module P/N: 9CTM010NR-00 TPM Cable P/N: 25CRZ-100600-S9R
