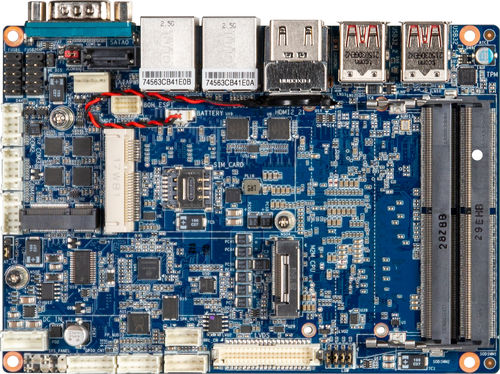

3.5" SubCompact SBC QBiP-1315EB

13th Generation Intel® Core™INFINEONSATA

3.5” SubCompact Board with 13th Generation Intel® Core™ i3-1315UE Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0 Specification Form Factor - 3.5" SBC 146W x 101.7D(mm) CPU - Intel® Core™ i3-1315UE Processor Intel® 7, 6 cores, 2P+4E, 8 threads, up to 4.5 GHz TDP 15W 10 MB Smart Cache Socket - 1 x FCBGA1744 Memory - 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules Ethernet - 2 x 2.5GbE LAN Ports (Intel® I226V) Video - Integrated Graphics Processor - Intel® UHD Graphics for 13th Gen. Intel® Processors: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (3 independent display outputs) Audio - Realtek® ALC269 Storage - 1 x SATA 6Gb/s Port (SATA RAID 0/1) Expansion Slots - 1 x 2280 M.2 M-Key (PCIe Gen4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot Internal I/O - 1 x 4-pin box power connector (DC in +9V~36VDC) 1 x SATA Power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x USB 2.0 headers 3 x COM headers (RS-232/422/485) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header Rear I/O - 1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x HDMI 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 TPM - Onboard TPM 2.0 security chip INFINEON SLB9672VU2.0 OS Compatibility - Windows 10/11 (x64) Operating Properties - Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing)
