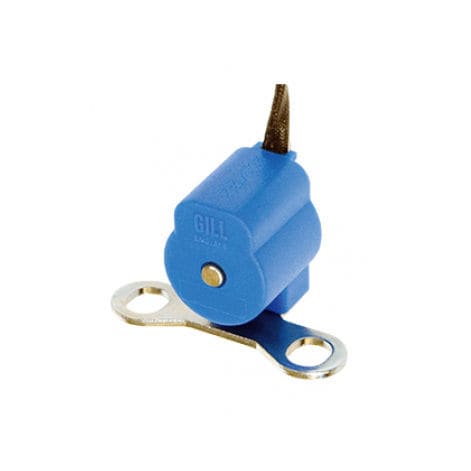

The Standard Ignition Pickup has been designed for the global gas engine industry. This robust ignition pickup incorporates easy to fit mountings and a standard AMP Econoseal connector for simple installation.
The Standard Ignition Pickup is rated to 10,000 teeth/second max rotation speed, with a nominal working gap of 2mm when used with the Gill timing disk.
Easy to fit mountings
Designed for the global gas engine industry
Standard AMP Econoseal connector
10,000 teeth/second max rotation speed
TECHNICAL
Resistance (nominal):
575 ohms
Working Gap:
2mm nominal (with Gill timing disk)
Maximum Speed:
10,000 teeth/second
Connection:
AMP Econoseal 'J' Series
