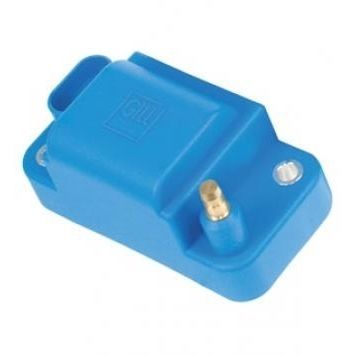

High-power coil SM60 A

for motorsignition

The SM60 A Ignition Coil is designed to provide powerful and efficient spark ignition for normally aspirated, turbo charged, stoichiometric or lean burn gaseous fuelled engines up to approximately 2 litres (120 cubic inches) per cylinder. Available with an AMP sealed connector, the SM60 A ignition coil is a single, high efficiency, compact, dry ignition coil designed to work with the Gill range of inductive igniters. SM60 A is fully encapsulated with no exposed core, providing robust spark ignition technology. Powerful and efficient spark ignition For turbo charged, stoichiometric or lean burn engines Available with an AMP sealed connector TECHNICAL Primary Resistance: 0.5 ohms nominal Primary Inductance: 2.5mH Peak Current: 10.5A Typical Spark Duration: 1000us Spark Energy: >60mJ LT Connections: AMP Superseal Connector HT Connections: SAE Post
