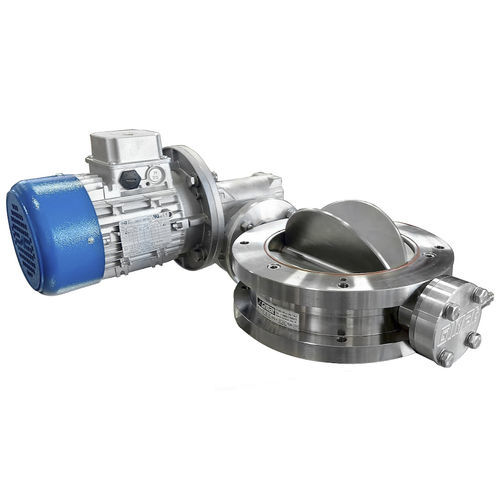

Pneumatic conveying rotary valve

for bulk materialspowderfor food

ROTARY VALVES – ROTARY FEEDERS Gimat recently introduced a line of rotary valves – rotary feeders, PATENT PENDING, to include in its installations or sell separately, in accordance with ATEX directive 2014/34/UE and MOCA 1935/2004. GIMAT rotary valves in the DN 150 - 200 - 250 - 300 version are operated by a gearmotor unit that can be controlled via an inverter if they have the function of dosing device – rotary feeders. The compact valve body, low weight and protruding rotor facilitate cleaning and maintenance. The rotary valves are also inserted below a cyclofilter inside a pneumatic conveying system in depression (max - 0.5 relative bar) or low pressure (max + 0.5 relative bar). They are made entirely of AISI 304 or 316 stainless steel. Thanks to the round flanges at the inlet and outlet, they are particularly suitable for vertical installations with minimum overall height, facilitating the construction of upstream and downstream connection carpentry. They have a useful flow rate of 2 to 13 M3/h considering a 60% filling rate.
