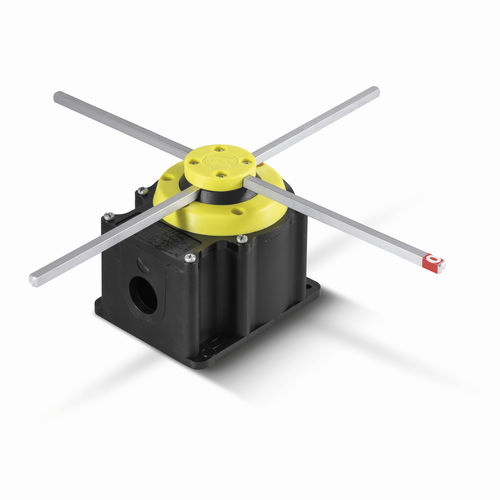

Gear limit switch FCR

rotary

These are rotary control switches measuring 300mm. The rods can be placed in 3-5 positions. These control switches have rotary gear whose rpm is from 12 to 200. Integrated with four to six microswitches. Product code/s FCR001FCR002FCR003FCR004FCR005FCR006 FCR.. – Position limit switch Designed to guarantee excellent performance in the most challenging operating conditions. Arranged with 4 fixing holes. Positive opening NC contacts for safety functions. IP65 protection degree. Aluminium rods with 6×6 mm section and enclosure in thermoplastic material. Cross rods with 4 maintained positions every 90°. Arranged with 1 output for cable clamps to reduce installation time and make wiring easier. Available different versions, also customizable on request.
