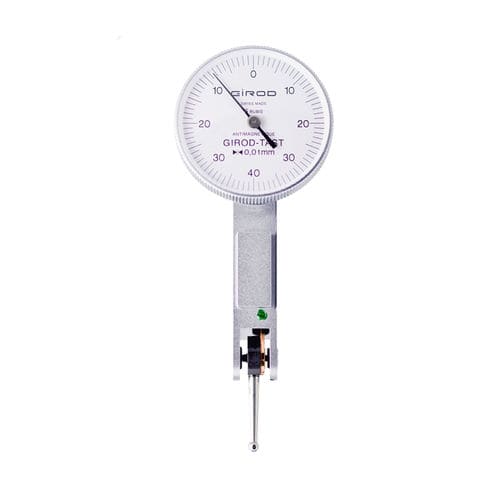

Dial comparator GT 1252 R

lever

Many models available : horizontal, vertical and longitudinal large and small diameter dial carbide contact point 12 mm or 36 mm length metric reading 0,01 mm or 0,002 mm or 0,001 mm *inch reading .0005” or .0001” or .00005” Warranted and rapid maintenance service. Each Girod-Tast is supplied in fitted case with 1 key for contact points and 1 dovetail stems ø 8 mm. Large selection of accessories available. Main features High sensitivity, repeatability and accuracy (according to DIN 2270 standards). The appliances are tested, highly reliable and have a very neat appearance. Unaffected by magnetic fields. Automatic reversing contact point, with constant clockwise rotation. Easy and error-free reading by only one revolution of the hand. Adjustable bezel and dial. Fully jewelled, completely independent and interchangeable movement. Easily and quickly removed and replaced for maintenance. Rugged one-piece housing provided with 3 dovetails : top, back and front; corrosion resistant with satin chrome finish. Contact point swivel supported in precision ball bearings. Designed for universal applications. Well-suited for workshop use. Interchangeable carbide contact point swivels over 240°.
