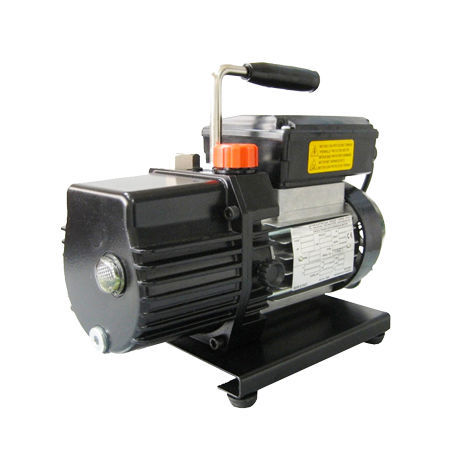

Rotary vane vacuum pump RS3Dlubricated220VACsingle-stage
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Lubrication
- lubricated
- Supply voltage
- 220VAC
- Number of stages
- single-stage
- Applications
- fiberglass
- Other characteristics
- small
- Ultimate vacuum
0.1 mbar
(0 psi)- Flow rate
46 l/min
(12.15 us gal/min)- Power
120 W
(0.16 hp)- Length
150 mm
(6 in)- Width
267 mm
(10.51 in)- Height
250 mm
(9.84 in)- Weight
6.4 kg
(14.11 lb)
Description
Vacuum pumps are used to autonomously generate a vacuum value in order to be able to check and calibrate vacuum gauges.
The pumps are suitable for use in labs to generate vacuum values in relatively small volumes, such as the ones of instruments or even in small containers, tanks and pipes to be able to carry out calibrations or leak tests.
The Mx vacuum value reached by these pumps can be as high as 10-2 mbar.
The pumps can come with a full series of analogue and digital pressure gauges used as reference instruments for the generated signal.
The MV6-SYSTEM device consists of a complete instrument to generate and adjust the vacuum value from 0 to the max vacuum value of the pump.
