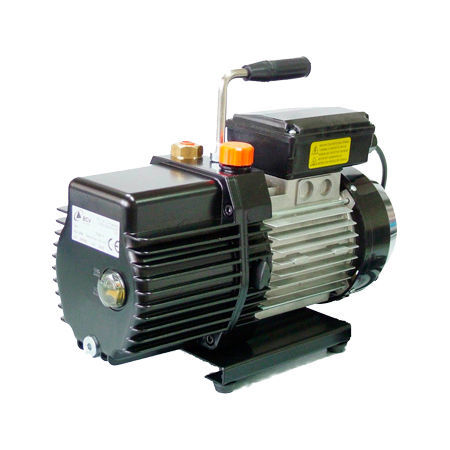

Vane vacuum pump RS9D
lubricated230VACsingle-stage

vane vacuum pump
vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
vane
Lubrication
lubricated
Supply voltage
230VAC
Number of stages
single-stage
Other characteristics
small
Ultimate vacuum

0.1 mbar
(0 psi)

Flow rate

180 l/min
(47.55 us gal/min)

Power

370 W
(0.5 hp)

Length

150 mm
(6 in)

Width

350 mm
(13.78 in)

Height

280 mm
(11.02 in)

Weight

12 kg
(26.46 lb)

Description

Vacuum pumps are used to autonomously generate a vacuum value in order to be able to check and calibrate vacuum gauges. The pumps are suitable for use in labs to generate vacuum values in relatively small volumes, such as the ones of instruments or even in small containers, tanks and pipes to be able to carry out calibrations or leak tests. The Mx vacuum value reached by these pumps can be as high as 10-2 mbar. The pumps can come with a full series of analogue and digital pressure gauges used as reference instruments for the generated signal. The MV6-SYSTEM device consists of a complete instrument to generate and adjust the vacuum value from 0 to the max vacuum value of the pump.
