Absolute rotary encoder AEN Series
opticalsolid-shaftflange

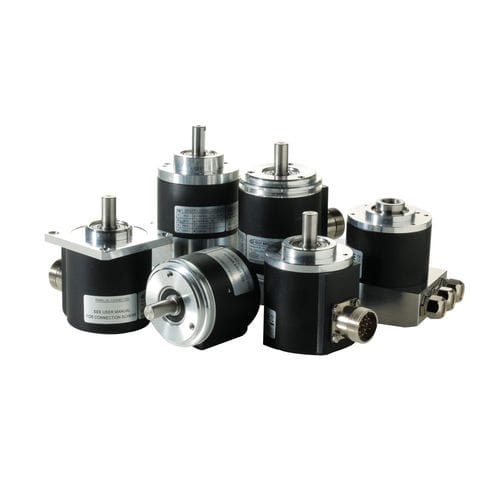

Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 2
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 3
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 4
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 5
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 6
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 7
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 8
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 9
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 10
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 11
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 12
Absolute rotary encoder - AEN Series - GIVI MISURE - optical / solid-shaft / flange - image - 13
Add to favorites
Compare this product
Go to the GIVI MISURE website for more information

Characteristics

Type
absolute
Technology
optical
Construction
solid-shaft, flange
Output signal
analog, parallel, CANopen, PROFIBUS, DeviceNet
Material
aluminum
Protection level
IP67, IP64
Other characteristics
compact, high-accuracy
Housing diameter

58 mm
(2.28 in)

Shaft diameter

6 mm, 10 mm, 12 mm
(0.24 in, 0.39 in, 0.47 in)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

Compact-design absolute rotary encoder, based on optical principle. Singleturn resolution up to 17 Bit. Multiturn resolution up to 12 Bit. High accuracy and stability of signals. Linearity ± ½ LSB (± 1 LSB for resolutions > 13 Bit). Several flanges available. Aluminium flange and body. Axial or radial output (with connector or cable). High rotational speed (up to 12,000 rpm). Diagnostics: warning, LED indication, temperature measurement, alarm bit.
