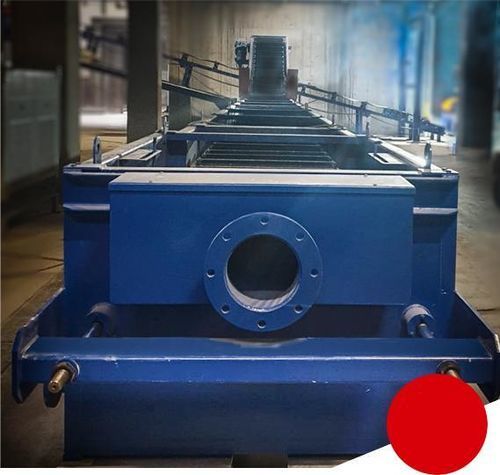

Fiberglass recycling unit

crushingfor process lines

General description
Glass Service supplies batch cullet recycling plants for the glass industry. Systems are engineered for different glass types and production needs, including:

• Tableware
• Container glass
• Perfumery
• Pharmaceutical neutral borosilicate
• Lead and barium crystal

Raw material source
Each plant is custom-designed to match customer requirements and local raw material availability. Inputs can be received and handled using multiple transport and packaging methods:

• Manual bags
• Big-bags (1000–1500 kg)
• Pneumatic transport
• Bulk

Storage and feeding solutions are adapted to the selected input type and can include silos, storage bays, automated bag dischargers or full pneumatic handling with dust filtration to minimize powder emissions.

Cullet recycling
Glass Service offers integrated cullet processing lines able to treat material from in-line quality testers or from external cullet sources. Typical equipment includes:

• Belt conveyors for cullet transport
• Bucket elevators
• Cullet crushers
• Cullet silos
• Dosing and weighing systems

Dosing solutions may be cone weighing scales, on-line dosing belts or gravity metric weighers. Equipment can be fitted with anti-wear protection where required.

Control system
The PLC-based control board manages batching from raw material intake to batch furnace silos, integrating control and drive functions. Key features include:

• Raw material load management
• Recipe management with historical recording and analysis
• Graphical plant overview
• Alarm management

HMI options range from a local touch-screen panel for semi-automatic plants to PC/SCADA for full automation. Manual emergency controls are provided for each machine in case of PLC fault.

Technical specifications

• Product: Cullet recycling solution for glass batch plants
• Applications: tableware, container, perfumery, pharma borosilicate, lead & barium crystal
• Inputs: bags, big-bags (1000–1500 kg), pneumatic transport, bulk
• Storage: silos or bulk storage bays
• Equipment: belt conveyors, bucket elevators, crushers, silos, dosing & weighing systems
• Dosing options: cone weighing scale, on-line dosing belt, gravity metric weighing
• Dust control: dedicated dust filters and dust extraction
• Control: PLC-based with recipe/history, graphical view and alarms
• HMI: touch panel (semi-auto) or PC/SCADA (full auto) with manual emergency controls
