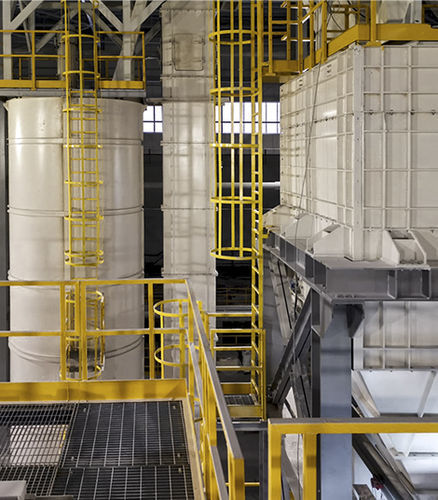

Batch processing unit

General description
Glass Service produces several batch plants for the glass industry for various glass types and production capacities. The semiautomatic batch plant is a tailor-made solution designed to customer requirements and local raw material availability.

Applicable productions

• Tableware
• Container glass
• Perfumery
• Pharmaceutical neutral borosilicate
• Lead and barium crystal

Raw material source
For each batch plant Glass Service provides a tailor-made intake solution. Customers can select the raw material source and the plant accepts different transport or packaging methods.

• Bags with manual loading
• Big-bag (1000-1500 kg)
• Pneumatic transport
• Bulk

Raw material storage and handling
Storage can be via silos or bulk storage bays. For each packaging type Glass Service develops suitable discharge systems (e.g., automatic bag openers with dust filtration or fully pneumatic feeding). The batch plants handle blending of main raw materials as well as refining and decoloring agents. All dust sources are detected and controlled by dedicated filters to minimize powder emissions.

SemiAutomatic batch plant
The semiautomatic batch plant requires some manual operations for batching preparation. Recommended for lower capacity installations and low-investment projects where reduced automation lowers initial cost while limiting human errors.

• Recommended for low pulling plants up to 50 TPD
• Suitable for low-investment projects

Examples of manual/semiautomatic operations

• Loading raw material into silos
• Manual cullet crusher feeding
• Manual batch transfer to furnace batch charger

Control system
The control system manages all batching phases from raw material input to furnace batch silos. The integrated control panel includes functions for equipment drivers (motors, vibrators). Based on a PLC, the system integrates control and power drive functions and provides recipe management, graphical plant views, alarms and historical recording.

• Raw material load management
• Recipe management with historical recording and analysis
• Graphical plant overview
• Alarm management
• HMI: local touchscreen for semiautomatic plants or PC/SCADA for fully automatic plants
• Manual local push-button panel for emergency operation in case of PLC fault

Technical characteristics / specifications

• Machine type: Semiautomatic Batch Plant
• Recommended capacity: up to 50 TPD
• Suitable productions: tableware, container, perfumery, pharma neutral borosilicate, lead & barium crystal
• Raw material inputs: bags (manual), big-bag (1000-1500 kg), pneumatic transport, bulk
• Storage: silos or bulk storage bays
• Discharging options: automatic bag opener with dust filter, pneumatic management
• Dust control: dedicated dust filter to minimize powder emissions
• Control: PLC-based control panel integrating control and power drive functions
• Control features: recipe management, historical recording and analysis, graphical plant view, alarm management
• HMI: local touchscreen for semiautomatic, PC/SCADA for fully automatic
• Emergency operation: manual button/lamp panel integrated
• Installation: tailor-made solution according to customer requirements and local raw material availability
