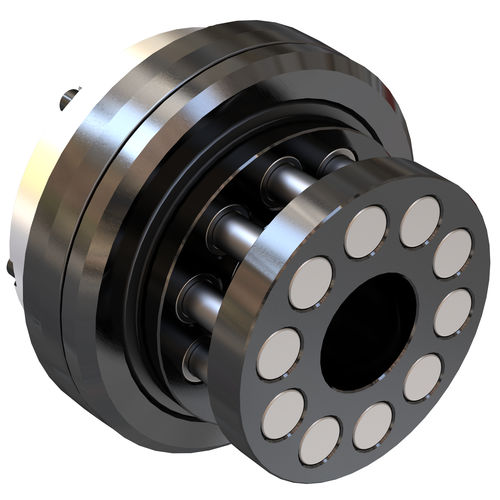

Harmonic gearhead coaxialpinion shaft10 - 20 Nm
Add to favorites
Compare this product
Characteristics
- Type
- harmonic
- Shaft orientation
- coaxial
- Shaft configuration
- pinion shaft
- Torque
- 20 - 50 Nm, 10 - 20 Nm, 50 - 100 Nm
- Mounting
- flange-mounted
- Configuration
- compact, flange
- Performance
- zero-backlash, high load capacity
- Applications
- for automation, for industrial applications, for robots, for robotics, for stepper motors, for servo motors, for material handling equipment, for medical devices, for heavy-duty applications, for rack-and-pinion drives, for conveyors
- Rotational speed
Min.: 11 rpm
(69.115 rad.min-1)Max.: 225 rpm
(1,413.7167 rad.min-1)
Description
The Harmonic Gearheads incorporate two different models. The flange mount gearheads and the pinion gearheads. Both versions are built for high capacity loads and have zero backlash. The pinion version is perfect for the complete RPS experience and very easy to instal.
Catalogs
No catalogs are available for this product.
