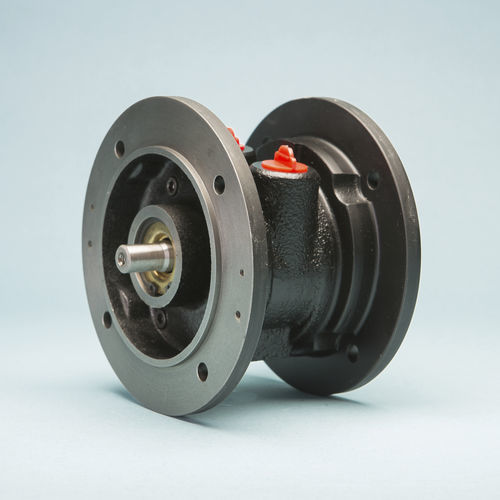

Friction brake BN series
spring activatedwith pneumatic releasefailsafe

friction brake
friction brake
friction brake
friction brake
friction brake
friction brake
friction brake
friction brake
friction brake
friction brake
Add to favorites
Compare this product


Characteristics

Type
friction
Operation
spring activated, with pneumatic release
Other characteristics
failsafe, robust, flange-mounted, for motors
Torque

14 Nm, 29 Nm, 75 Nm, 600 Nm
(10.3259 ft.lb, 21.3893 ft.lb, 55.3172 ft.lb, 442.5373 ft.lb)

Description

The ATEX approved brakes within the GLOBE program have a very compact built and are very robust. They are spring activated, air released and are to be used in static applications. The holding torque is about 1,5 to 2 times the maximum of the motor. Our pneumatic brakes can be combined with all our air motors. The combination of motor with brake is widely used for winches, cranes and positioning devices. All brakes are built from cast iron or steel housings and are available with either a IEC or NEMA flange mounting. This makes our brakes easy to install on our air motors and gearboxes. If you have special requirements, we are happy to advise you on compound combinations. Get in contact with one of our specialists.
