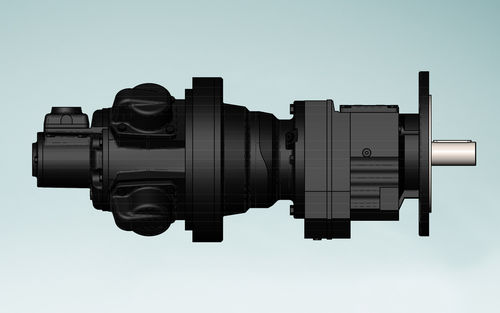

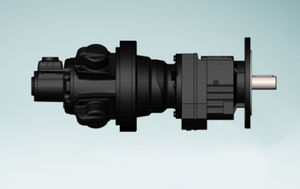

Piston air motor RM410 series

for heavy-duty applicationscompactlubricated

Product overview
The GLOBE RM410 piston air motor can be combined with one of our standard coaxial gearboxes when a lower output speed and/or higher output torque is required. Thanks to the wide range of reduction ratios, the drive can be precisely matched to the application.
Based on the required speed, torque and mounting configuration, we select the most suitable motor and gearbox combination.

Key points

• Broad torque range across gearbox variants (see specifications table)
• Nine available gearbox ratios to adapt speed and torque to the application
• Coaxial gearbox design for compact, inline installation
• Selection based on required speed, torque and mounting configuration

Product specifications (table)
Productname | Gearbox Ratio | Min. Start Torque Nm | Min. Start Torque lb⋅ft | Max Power HP | Max Power kW | Max Speed RPM | Max Torque Nm | Max Torque lb⋅ft | Torque at Max Pwr Nm | Torque at Max Pwr lb⋅ft
RM410 1 | 2.80 | 189 | 145 | 14.10 | 10.50 | 722 | 6,890 | 1,550 | 168 | 128
RM410 2 | 4.50 | 304 | 232 | 14.10 | 10.50 | 449 | 7,470 | 1,680 | 271 | 206
RM410 3 | 7.20 | 493 | 376 | 14.10 | 10.50 | 277 | 8,620 | 1,940 | 438 | 334
RM410 4 | 11 | 738 | 563 | 14.10 | 10.50 | 185 | 9,560 | 2,150 | 656 | 500
RM410 5 | 14 | 964 | 736 | 14.10 | 10.50 | 142 | 10,200 | 2,300 | 857 | 654
RM410 6 | 24 | 1,172 | 894 | 13.40 | 10.00 | 111 | 16,900 | 3,800 | 1,042 | 795
RM410 7 | 28 | 1,543 | 1,177 | 13.40 | 10.00 | 84 | 17,100 | 4,100 | 1,371 | 1,046
RM410 8 | 37 | 1,814 | 1,383 | 13.40 | 10.00 | 71 | 18,200 | 4,100 | 1,612 | 1,230
RM410 9 | 61 | 3,953 | 3,015 | 13.40 | 10.00 | 33 | 24,400 | 5,500 | 3,514 | 2,680

Characteristics / Technical specifications

• Model: RM410
• Type: Piston air motor combined with coaxial gearbox (geared motor)
• Purpose: higher torque at lower output speed for demanding applications
• Features: wide range of gearbox reduction ratios to precisely match required speed and torque; selection based on required speed, torque and mounting configuration
• Available variants: RM410 1 through RM410 9 with varying gearbox ratios and performance data (see specifications table)
