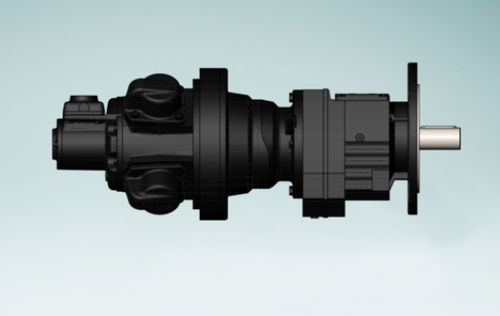

Radial piston air motor RM510 series

for heavy-duty applicationsfor hydraulic pumpsfor materials handling

Product overview
The GLOBE RM510 radial piston air motor is combined with coaxial gearboxes to provide lower output speed and increased output torque. A wide range of gearbox reduction ratios enables precise matching to application requirements. Based on required speed, torque and mounting configuration, the most suitable motor + gearbox combination can be advised by our engineers.

Applications

• Industrial drives requiring high torque at low speed (winches, crushers, conveyors)
• Heavy-duty rotating machinery and torque-intensive operations
• Situations where pneumatic power supply is preferred or required

Selection and mounting
The selection process considers required output speed, torque and mounting arrangement. Ten gearbox reductions are available (RM510 1 to RM510 10), all in coaxial configuration to simplify integration into existing drive trains.

Technical highlights

• Rated max power: 19.40 HP (14.20 kW) across variants
• Gearbox ratios available: 4.91 to 95.24
• Start torque range: 795 to 15,071 Nm
• Max torque range: 11,300 to 120,000 Nm
• Max speed range: 224 to 12 RPM
• Weight range: 355 to 855 kg depending on variant

Ordering and documentation
Refer to GLOBE for detailed datasheets, mounting drawings and assistance to select the correct RM510 variant for your application.

You can also use the free online selector to get a motor recommendation and the 3D plans in about a minute.
