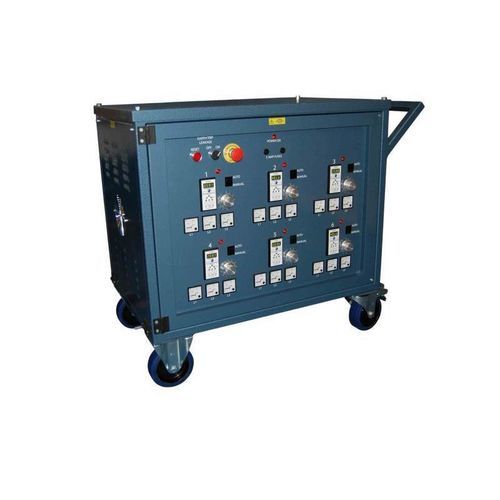

Heating control unit GHT8004

heaterregulatingfor resistive or inductive loads

Product Details
Mains Voltage Control Unit, 6 channels, mild steel casing. Model: GHT8004. Rated mains voltage: 240V.

Features

• Each channel fitted with Advantage 3 Controller, energy regulator, neon indicator and auto/manual switch
• 3 ammeters (one per phase)
• 2 IMO contactors per channel for fail-safe operation
• 6 x 63 A 5‑pin outlets protected by a 400 A MCB
• 2 x 240 V auxiliary sockets
• Capacity to run up to 18 channel elements of 13.2 kW each (total capacity shown)
• Mains input isolator and emergency stop / power cut-off switch
• 7‑pin multipin plug for external programmer connection
• 6 panel-mounted Type K thermocouple input sockets
• Boxing prepared for export

Technical specifications

• Product code: GHT8004
• Internal SKU: ght8004
• Product ID: 663
• Product group: GHT8004
• Construction: mild steel casing
• Channels: 6
• Rated mains voltage (as in title): 240 V
• Maximum channel element capacity: up to 18 × 13.2 kW total
• Outputs: 6 × 63 A 5‑pin outlets (protected by 400 A MCB)
• Accessories / interfaces: 2 × 240 V auxiliary sockets, 7‑pin multipin programmer plug, 6 × Type K thermocouple sockets
• Protection / safety: 2 × IMO contactors per channel, mains isolator and emergency stop / power cut-off
