Heating control unit GHT8003

heaterregulatingfor resistive or inductive loads

Overview

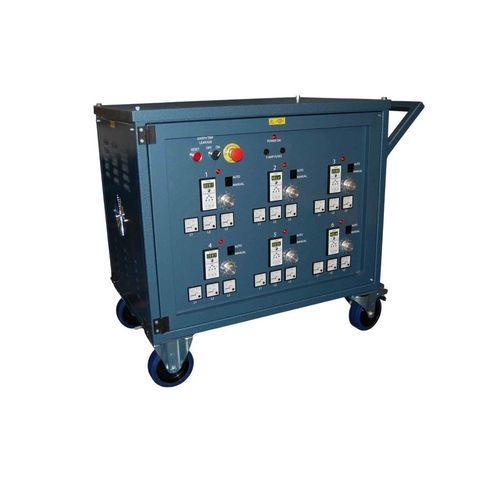

Mains Voltage Control Unit GHT8003 is a 6-channel control panel in a mild steel enclosure designed for 110V supply. The unit provides channel-level control, monitoring and safety functions for industrial heating elements and similar loads.

Product code
GHT8003

Features

• Each channel fitted with Advantage 3 Controller, energy regulator, neon indicator and Auto/Manual switch
• 3 x ammeters (one per phase) for mains monitoring
• 2 x IMO contactors per channel for fail-safe operation
• 6 x 63 A 5-pin outlets protected by a 400 A MCB
• 2 x 110V auxiliary sockets for peripheral devices
• Capacity to operate up to 18 x 13.2 kW channel elements in total
• Mains input isolator and emergency stop / power cut-off switch
• Multipin 7‑pin plug for external programmer connection
• 6 x Type K thermocouple panel-mounted input sockets
• Boxing and packing prepared for export

Technical specifications

• Number of channels: 6
• Casing material: Mild steel
• Controller per channel: Advantage 3 Controller
• Indicators: Neon indicator per channel
• Control modes: Auto / Manual switch per channel
• Ammeters: 3 (one per phase)
• Contactors: 2 x IMO contactors per channel (fail-safe)
• Outlets / protection: 6 x 63 A 5-pin outlets with 400 A MCB
• Auxiliary sockets: 2 x 110V
• Maximum element capacity: Up to 18 x 13.2 kW channel elements
• Safety: Mains input isolator and emergency stop / power cut-off switch
• External programmer connection: Multipin 7-pin plug
• Thermocouple inputs: 6 x Type K panel-mounted sockets
• Packaging: Export-ready boxing
