Power cable GHT6001

compensationinsulatedoil-resistant

Product overview

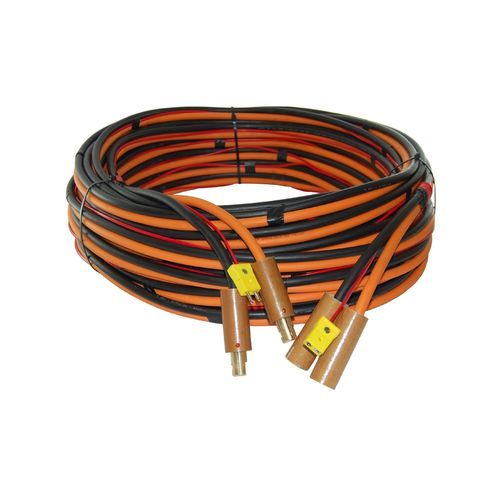

The GHT6001 triple cable set provides two 16mm copper HOFR (heat and oil resistant, flame retardant) double-insulated power cables and one compensating cable to deliver power and temperature feedback for heat treatment operations. Standard configuration includes 30 m lengths and industry-standard 300A twistlock and thermocouple connections.

Application
Designed for use with heat treatment units to supply power and thermocouple connection to a heater control zone serving up to three heaters. Suitable for industrial heat-treatment workflows where durable, high-current cable runs and accurate temperature sensing are required.

Options / Variants

• Available lengths: standard 30 m; optional 15 m configuration

Technical specifications

• Product code: GHT6001
• Cable type (power): HOFR (heat and oil resistant), flame retardant, double-insulated 16 mm copper cable
• Compensating cable: 1 × compensating cable (standard 30 m)
• Power cable lengths: 2 × 30 m standard (also available in 2 × 15 m)
• Connectors (unit end): 300A male twistlock connectors on the two HOFR power cables; thermocouple plug on the compensating cable
• Connectors (workpiece end): 300A female twistlock connectors on the two HOFR power cables; thermocouple socket on the compensating cable
• Intended use: provides power and thermocouple connection to a heater control zone for up to 3 heaters
• SKU: ght6001
