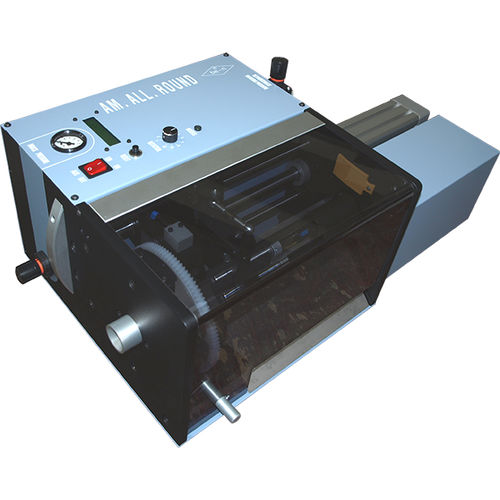

Rotary blade stripping machine AM.ALL.ROUND
coaxial cablebench-top

rotary blade stripping machine
rotary blade stripping machine
Add to favorites
Compare this product


Product to be stripped
coaxial cable
rotary blade
Other characteristics

Min.: 2 mm (0 in)

Max.: 24 mm (1 in)


The JACKET STRIPPING MACHINE AM.ALL.ROUND is semi-automatic bench with rotating blade head suitable for UNIFILARY, MULTIPLE, COAXIAL CABLE, PREVIOUSLY CUTTING CABLES is easy and safe. With simple manual operations you can adjust the cable diameter up to 24 mm. And the length of the STRIPPING up to 160 mm. (With partial removal up to 400 mm for AM.ALL.ROUND-400 version). The JACKET STRIPPING MACHINE AM.ALL.ROUND adjusts the adjustable head / blade rotation speed and features an LCD display for settings control. The JACKET STRIPPING MACHINE AM.ALL.ROUND is supplied complete with all accessories and instruction manual. Technicale features: CABLE DIAMETER : 2 - 24 mm STRIPPING LENGTH : 15 - 160 mm (total strip) PARTIAL STRIPPING LENGTH : 300 mm (partial strip) CYCLE TIME : 2 - 5 seconds DIMENSIONS : L 380 x P 635 x H 260 mm
