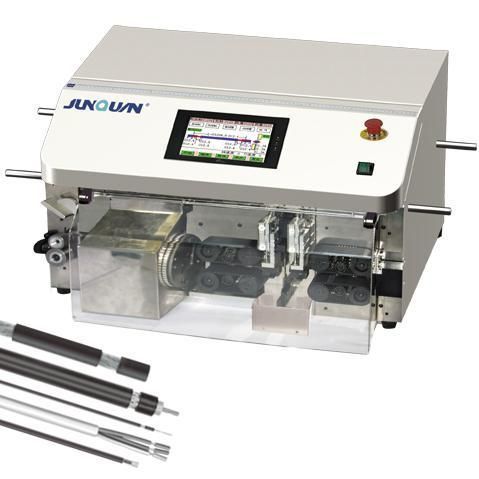

Coaxial cable stripping machine ZDBX-65R

bench-topprogrammableautomatic

Product description
The stripping machine for coaxial cables ZDBX-65R is designed to perform up to 6 stripping stages in a single operation on multiple cable types. It is optimized for coaxial cable processing with electric drive and full electronic control of all process parameters. The unit supports quick setup and storage of up to 99 programs via the operator display.

Technical features
DIMENSIONS: 660 x 560 x 390 mm (WxDxH)
MULTI CORE CABLE: 0.03 – 25 mm2
SINGLE CORE CABLE: up to 6 mm2
STRIPPING LENGTH: 1 – 42 mm
WEIGHT: 80 kg
POWER SUPPLY: AC 220 V

Additional information / services related to the product

• Range of production equipment and partner brands
• Customization of machines and production lines to customer requirements
• Design and manufacturing of special systems
• Technical assistance at supplier or client site
• Spare parts availability for all supplied machines
• Training courses and demonstrations for equipment use
• Installation and operator training
• Feasibility verification according to customer samples
• Free sample testing on customer-provided samples
• On-site or at-supplier demonstrations
• Scheduled maintenance to minimise downtime
• Trade-in options for replacement of obsolete equipment
• Supply of steel, carbide and titanium stripping blades, mini-applicators, electrical terminals, pre-insulated connectors and splice strips
• Removal and revaluation of used equipment
• Sale of components and accessories from major market brands
• Modification or upgrade of existing production lines for new requirements

Characteristics / technical specifications

• Model: ZDBX-65R
• Stripping stages: up to 6 stages in one operation
• Program memory: up to 99 stored programs for quick recall
• Stripping length range: 1 mm – 42 mm
• Workable multi-core cable section: 0.03 – 25 mm2
• Workable single-core cable section: up to 6 mm2
• Machine dimensions (WxDxH): 660 x 560 x 390 mm
• Weight: 80 kg
• Power supply: AC 220 V
