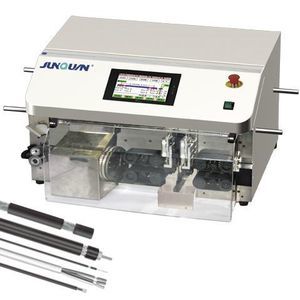

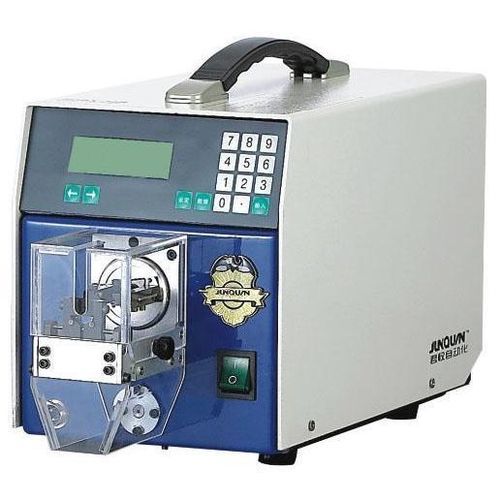

Coaxial cable stripping machine ZDBX-36R

portablebench-topautomatic

Product overview
The ZDBX-36R coaxial cable stripping machine performs up to 6 stripping stages in a single operation on multiple cable types, with particular suitability for coaxial cables. It features electric drive and fully electronic adjustment of all process parameters for repeatable results.

Technical features:
DIMENSIONS: 185 x 435 x 230 mm (WxDxH)
WEIGHT: 15 kg (approx.)
POWER SUPPLY: 230V 50-60Hz single phase
STRIPPING LENGTH: 0.01 to 30 mm, max 6 steps
TOLERANCE: from 0.01
WORKABLE DIAMETER: 0.1 mm to 100 m
WORKABLE SECTION: 0.08 to 25 mm2
COMPATIBLE CABLES: PVC, Teflon, silicon, glass, coaxial

Services and additional information

• Wide range of products from in-house production and leading market brands
• Customization of equipment and production lines to customer requirements
• Design and manufacture of special systems
• Technical support at our facility or on customer site
• Spare parts available for all offered machines
• Training and demonstrations for correct equipment use
• Installation and operator training
• Feasibility assessment based on customer samples
• Free sample tests using customer materials
• On-site or in-factory demonstrations
• Courses and seminars for advanced equipment use
• Scheduled maintenance to prevent costly downtime
• Trade-in options for replacing old systems
• Supply of steel, carbide and titanium stripping blades, mini-applicators, electric terminals, pre-insulated connectors, splice strips
• Buy-back and re-evaluation of used equipment
• Sale of components and accessories from major brands
• Implementation or modification of existing production lines for new requirements

Technical specifications

• Dimensions: 185 x 435 x 230 mm (WxDxH)
• Weight: 15 kg (approx.)
• Power supply: 230V 50-60Hz single phase
• Stripping stages: up to 6 steps
• Stripping length: 0.01 to 30 mm
• Tolerance: from 0.01
• Workable diameter: 0.1 mm to 100 m
• Workable cross section: 0.08 to 25 mm2
• Compatible cable types: PVC, Teflon, silicon, glass, coaxial
• Memory: up to 99 programs
