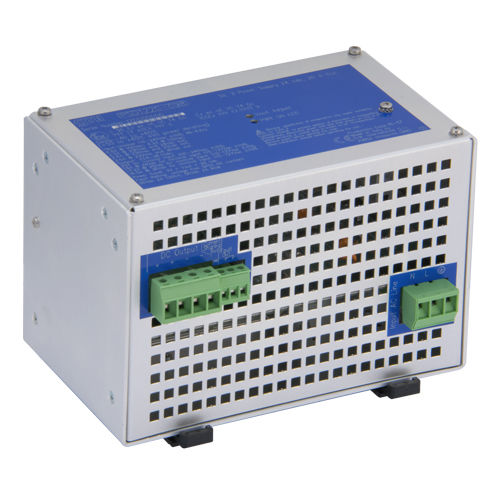

DIN rail power supply PSD1220-098

tabletopDC/DCregulated

The Power Supply type PSD1220-098 is an anodized aluminum unit. The Power Supply provides 24Vdc, 20 A output. PSD1220-098 unit can be paralleled, with load sharing circuits, which distribute current load equally to each power supply to increase reliability and reduce internal power dissipation. The Power Supply accepts AC power input sources with nominal voltage range 110 to 240 Vrms (± 10%). Therefore lower limit is 100 Vrms and upper limit is 264 Vrms. PSD1220-098 unit has got the same AC, DC, Fault and Current Sharing connectors used in the PSD1210 power supply module, for easy model to model replacement. FEATURES Systematic capability SIL 3. Power factor correction. The same AC, DC, Fault and Current Sharing connectors used in the PSD1210 power supply module, for easy model to model replacement. Installation in Zone 2/Div. 2 hazardous locations. EMC Compatibility to EN61000-6-2, EN61000-6-4. TÜV Functional Safety Certification. Under and over voltage alarm monitoring. 3 over voltage redundant protections. Reduces Power dissipation (in parallel/redundant configuration) by replacing a Schottky diode with Mosfet Active Ideal Diode. Better than 93% efficiency @230 Vac input, full load and full output voltage range. High load fuse breaking capability without interrupting operations. Conformal coated on all boards for durability and protection.
