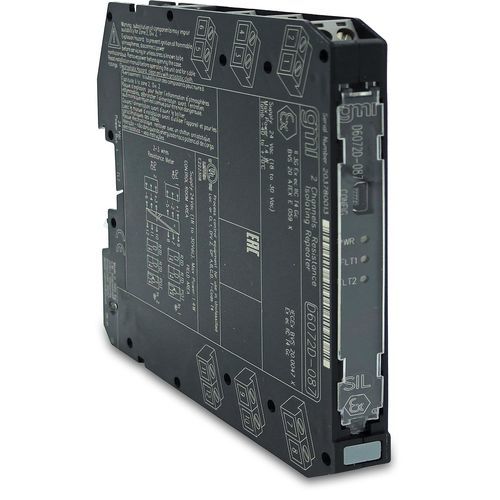

Current repeater D6072D-087

ATEXDIN rail

SIL2 Resistance RepeaterThe Resistance Repeater D6072-087 accepts a resistance/RTD or transmitting potentiometer sensor and repeats the resistance with isolation, suitable for applications requiring SIL 2 level in safety related systems for high risk industries.SIL 2 / SC 3Installation in Zone 2Installation in Div. 22/3/4wire res./RTD or potentiometer inputBurnout Fault detectionFully programmable operating parametersHigh AccuracyThree port isolation, Input/Output/SupplyHigh Density, two channels per unitTechnical DataSupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption37 mA @ 24 Vdc with 1 mA excitation current, typical.Power Dissipation0.9 W @ 24 Vdc with 1 mA excitation current, typical.InputType2-3 wire Resistance or 2 transmitting pot.Integration timefrom 50 ms to 500 ms.Input range0 to 4 kΩ.Measuring RTD current≤ 0.15 mA.OutputType2-3 wire resistanceTransfer characteristiclinear, scaled or custom.Response time10 to 90 % step: ≤ 10.0 ms (slow), ≤ 1.2 ms (fast).Output range0 to 400 Ω.Excitation current0.1 to 10 mA.FaultTypeBurnout / Internal fault. Output reflects fault condition via highscale (450 Ω) value forcing. Fault condition is also signaled via BUS and red LED on front panel.Input to out performanceRef. Conditions24 V supply, 23 ± 1 °C ambient temperature, slow integration mode, 3 wires configuration for RTD, input/output range 10 to 400 Ω.Calibration and linearity accuracy≤ 200 mΩ typical (Excitation Current ≥ 1 mA); ≤ 300 mΩ typical (0.5 mA ≤ Excitation Current Temp. influence± 20 mΩ/°C, typical (Excitation Current ≥ 1 mA).IsolationTest VoltageIn/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus.Weightabout 135 gConnectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 2CertificationsATEX: DEKRA ATEX D6072 Series English CertificateEMC: D5000/D6000 EAC EMC Declaration of ConformityEx: EAC Ex Certificate for D6000 and TB/TBE SeriesEx: UL-cUL D6072, D6072-087, D6072-096, D6072-099 DivisionsIECEx: DEKRA IECEx D6072 Series English CertificateMetrological: Belarus, Kazakhstan, Russia certificates for D5000/D6000 SeriesSIL: TUV IT 25 SIL 0636 SIL Certificate SummaryDeclarations of ConformityEU Declaration of Conformity of D6072Declaration of Conformity G3 complianceCharacteristics / Technical SpecificationsProduct: D6072D-087Type: SIL2 Resistance RepeaterInput: 2/3/4 wire resistance/RTD or potentiometerOutput: 2-3 wire resistanceChannels: 2Mounting: DIN-Rail 35 mmOperating temperature: –40 to +70 °CDimensions: 12.5 x 123 x 120 mmWeight: about 135 gStatus: ACTIVE
