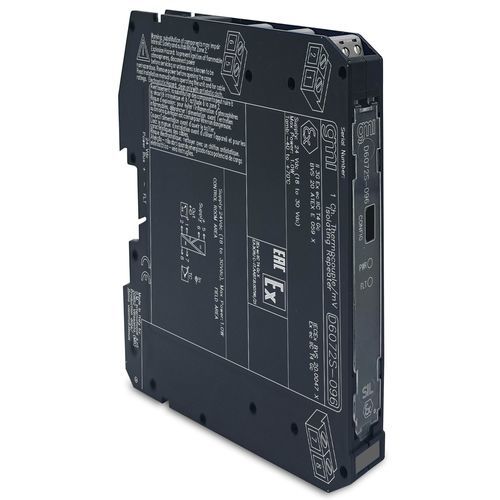

Isolated repeater D6072S-096

DIN rail

SIL2 Thermocouple/mV RepeaterThe Thermocouple/mV Repeater D6072-096 accepts a low level DC signal from millivolt or thermocouple sensor and repeats, with isolation, the signal, suitable for applications requiring SIL 2 level in safety related systems for high risk industries. For D6072D-096 module: duplicator function provides two independent outputs from one single input.SIL 2 / SC 3Installation in Zone 2Installation in Div. 2mV or thermocouple inputOutput duplicationFully programmable operating parametersHigh Accuracy, µP controlled A/D converterThree port isolation, Input/Output/SupplySupplyVoltage24 Vdc nom (18 to 30 Vdc), reverse polarity protectedCurrent Consumption30 mA @ 24 Vdc, typical.Power Dissipation0.6 W @ 24 Vdc, typical.InputTypeMillivolt or any type of thermocouple within Input Range.Integration time75 ms (fast), 375 ms (slow), user selectable.Input range-10 to +100 mV.Thermocouple burnout current≤ 50 µA.OutputTypeMillivolt.Transfer characteristiclinear.Response time≤ 20 ms (10 to 90 % step).Output range-10 to +100 mV.FaultTypeOutput reflects burnout/internal fault condition via highscale (+110 mV) value forcing. Fault condition is also signaled via BUS and red LED on front panel.Input performanceRef. Conditions24 V supply, 23 ± 1 °C ambient temperature, slow integration mode.Calibration and linearity accuracy≤ ± 10 µV.Temp. influence≤ ± 3 µV/°C, typical.Output performanceRef. Conditions24 V supply, 23 ± 1 °C ambient temperature, slow integration mode.Calibration and linearity accuracy≤ ± 10 µA.Temp. influence≤ ± 3 µV/°C, typical.IsolationTest VoltageIn/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 V.Environmental conditionsOperating temperaturetemperature limits –40 to +70 °C.Storage temperaturetemperature limits –45 to +80 °C.MountingTypeDIN-Rail 35 mm, with or without Power Bus.Weightabout 130 gConnectionby polarized plug-in disconnect screw terminal blocks to accommodate terminations up to 2.5 mm² (13 AWG).DimensionsWidth 12.5 mm, Depth 123 mm, Height 120 mm.Status: ACTIVEChannels: 1Technical Specifications:Supply Voltage: 24 Vdc nom (18 to 30 Vdc)Current Consumption: 30 mA @ 24 VdcPower Dissipation: 0.6 W @ 24 VdcInput: Millivolt or any type of thermocouple within Input RangeInput Range: -10 to +100 mVOutput: Millivolt, linear, -10 to +100 mVResponse Time: ≤ 20 ms (10 to 90 % step)Isolation: In/Out 2.5 kV; In/Supply 2.5 kV; In/In 500 V; Out/Supply 500 V; Out/Out 500 VOperating Temperature: –40 to +70 °CStorage Temperature: –45 to +80 °CMounting: DIN-Rail 35 mmWeight: about 130 gDimensions: 12.5 x 123 x 120 mm
