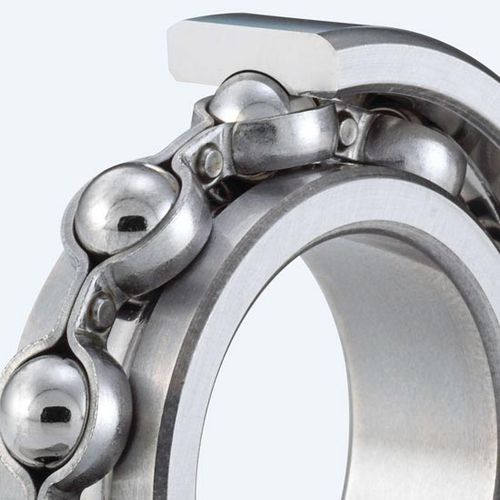

Deep groove ball bearing
ballradialsteel

deep groove ball bearing
deep groove ball bearing
Add to favorites
Compare this product


Characteristics

Rolling element
ball
Configuration
radial, deep groove
Material
steel
Other characteristics
high-speed, with cage, high-precision, low-noise, low-friction, hybrid
Applications
for industrial machines, for machines
Inside diameter

Min.: 5 mm (0.197 in)

Max.: 40 mm (1.575 in)

Outside diameter

Min.: 16 mm (0.63 in)

Max.: 80 mm (3.15 in)

Width

Min.: 5 mm (0.197 in)

Max.: 18 mm (0.709 in)

Description

The use of high-precision radial groove ball bearings is especially recommended when axial forces are supported in two directions, but the installation space makes the use of a spindle bearing pair impossible; plus when the best-possible guide for rotating components is needed, but the RPM requirements are less important. Depending upon the load capability and the installation space available, GMN provides deep groove ball bearings in sizes 60 and 62 as per DIN 625. A large selection of various cages, lubricants and covers make it possible to adapt GMN deep groove ball bearings to any application. SERIES 60.. AND 62.. _Universally deployable _Takes axial and radial forces in both directions _Reference characteristic RPM’s: 0.6 · 106 mm / min (steel cage) _Also available as a hybrid ball bearing SERIES Z _Design with one shield SERIES 2Z _Design with two shields SERIES X2Z _Bearing with over-wide and two shields _Reference characteristic RPM’s: 1.0 · 106 mm / min
