Machining spindle HCT millinglubricationlocking
Add to favorites
Compare this product
Characteristics
- Function
- machining, milling, lubrication, locking
- Other characteristics
- high-speed, motorized
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 40,000 rpm
(251,327.41 rad.min-1)- Diameter
Min.: 120 mm
(4.7 in)Max.: 400 mm
(15.7 in)
Description

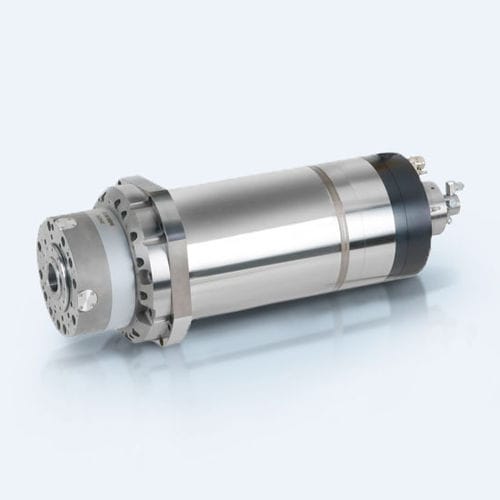

GMN high-speed milling spindles are an essential component of highly-effective machining of various materials. Whether aluminum, steel or titanium, these spindles are optimally designed for all machining tasks which require performance, torque and speed. Using an oil-air or grease permanent lubrication, the spindle bearings operate in a secure fashion.
With GMN shaft lock for lathe work.
TECHNICAL DATA:
Power: S1 max. 150 kW
Torque: S1 max. 1.000 Nm
Motor: Asynchronous or synchronous motor
Tool interface: HSK-A/-B/-E/-F/-T, SK, BT, PSC
Lubrication: Oil-air lubrication or permanent grease lubrication
