Universal spindle HSP series
for grindingfor millingfor drilling

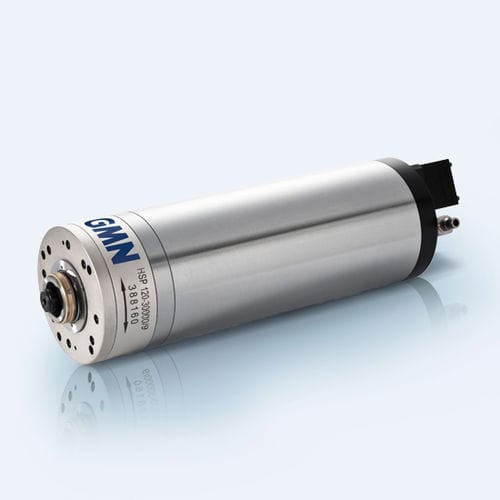

Universal spindle - HSP series - GMN - for grinding / for milling / for drilling
Universal spindle - HSP series - GMN - for grinding / for milling / for drilling
Universal spindle - HSP series - GMN - for grinding / for milling / for drilling - image - 2
Add to favorites
Compare this product
Go to the GMN website for more information

Characteristics

Function
for grinding, for milling, for drilling, universal
Drive system
motorized, AC motor
Spindle mount
HSK-C 63, HSK-C 50, HSK-C 25, HSK-C 32, HSK-C 40, HSK-C 80
Lubrication/cooling
oil-lubricated, liquid-cooled
Other characteristics
high-speed
Rotational speed

Min.: 15,000 rpm
(94,247.7796 rad.min-1)

Max.: 51,000 rpm
(320,442.4507 rad.min-1)

Diameter

Min.: 100 mm
(3.9 in)

Max.: 230 mm
(9.1 in)

Description

GMN high-speed grinding spindles of the HS, HSX, HV-X and UHS series are irreplaceable for most precise machining tasks. Whether you must work with holes or frames, with these spindles you always make the right choice. The HV-X and HV-P series are optionally available with a rotational angle sensor, and therefore outstandingly suitable for 4Q operation. The types of the HV-P, HSP and HSP..g series are equipped with an HSK-C holder and furthermore suited for drilling and milling applications. All-round high-speed spindle with oil-air lubricated bearing for universal grinding, milling and drilling applications. TECHNICAL DATA: Power: S1 max. 45 kW Torque: S1 max. 85,3 Nm Motor: Asynchronous motor Tool interface: HSK-C Lubrication: Oil-air lubrication
