Grinding spindle HSP..G series
for millingfor drillinguniversal

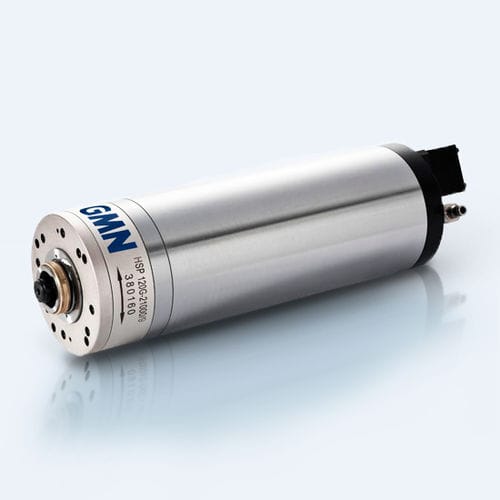

Grinding spindle - HSP..G series - GMN - for milling / for drilling / universal
Grinding spindle - HSP..G series - GMN - for milling / for drilling / universal
Grinding spindle - HSP..G series - GMN - for milling / for drilling / universal - image - 2
Add to favorites
Compare this product
Go to the GMN website for more information

Characteristics

Function
for grinding, for milling, for drilling, universal
Drive system
motorized, AC motor
Spindle mount
HSK-C 63, HSK-C 50, HSK-C 25, HSK-C 32, HSK-C 40, HSK-C 80
Lubrication/cooling
grease lubricated, liquid-cooled
Other characteristics
high-speed
Rotational speed

Max.: 30,000 rpm
(188,495.5592 rad.min-1)

Min.: 10,000 rpm
(62,831.8531 rad.min-1)

Diameter

Max.: 230 mm
(9.1 in)

Min.: 100 mm
(3.9 in)

Description

GMN high-speed grinding spindles of the HS, HSX, HV-X and UHS series are irreplaceable for most precise machining tasks. Whether you must work with holes or frames, with these spindles you always make the right choice. The HV-X and HV-P series are optionally available with a rotational angle sensor, and therefore outstandingly suitable for 4Q operation. The types of the HV-P, HSP and HSP..g series are equipped with an HSK-C holder and furthermore suited for drilling and milling applications. All-round high-speed spindle with permanent grease lubricated bearing for universal grinding, milling and drilling applications. TECHNICAL DATA: Power: S1max. 25 kW Torque: S1max. 85,3 Nm Motor: Asynchronous motor Tool interface: HSK-C Lubrication: Constant grease lubrication
