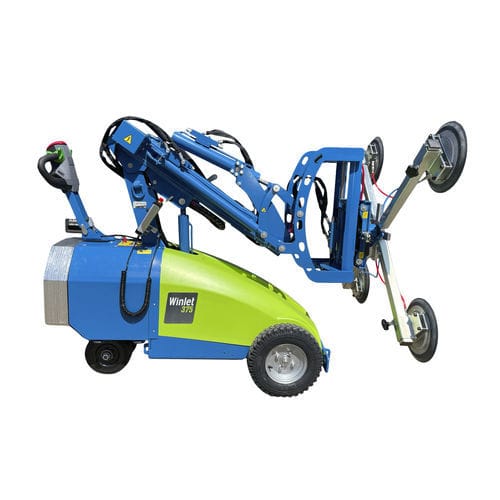

Battery-powered lifter Winlet 375

manualhydraulicfork

• Max lifting capacity (arm in) 375 kg
• Mas lifting capacity (arm out) 200 kg
• Max lifting capacity with side mounted yoke/load 200 kg
• Max horizontal lifting height 3.078 mm
• Max vertical lifting height (centre yoke) 2.670 mm
• Total width 690 mm
• Manual horizontal load sideshift 100 mm
• Hydraulic vertical fine lift 200 mm
• Rotation of front – manual endless
• Operating hours 12h
• batterie charging time 8-10h
• Optional with lifting hook
• Optional with pallet forks

Winlet 375 combines superior lifting capacity and reach with the unique compact design. With this glazing robot you can handle heavy elements up to 375 kg. bringing it through rough terrain and narrow doorways.

Due to the compact design, confined spaces suck as elevators and balconies are no problem for Winlet 375.

The low weight of Winlet 375 makes it possible to use it where heavier construction equipment cannot be used due to surface pressure.
