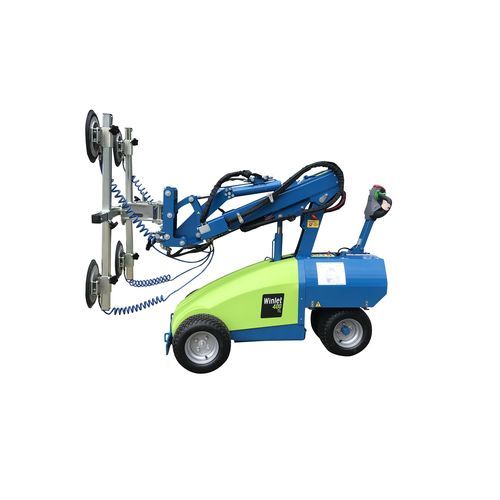

Glazing robot Winlet 400TL DHB HS

Overview
The Winlet 400TL DHB HS is an off‑road glazing robot designed for outdoor installations, offering extended reach and a lifting capacity of 415 kg. It is equipped with extra‑wide steering and traction wheels for improved stability on uneven terrain, a double hydraulic boom (2×500 mm) and a front hydraulic sideshift for precise positioning.

Features

• Off‑road capable glazing robot with extra‑wide steering and traction wheels for enhanced stability outdoors
• Lifting capacity: 415 kg (depending on configuration and boom position)
• Double hydraulic boom: 2 × 500 mm for extended reach
• Front hydraulic sideshift for precise positioning during installations
• 100 mm hydraulic side shift with linear movement (hydraulic side shift mechanism)

Control systems & operator panels

• PSAC (Proportional Single Axis Control): traditional Winlet control allowing stepless operation of a single function
• MAC (Multi Axis Control): simultaneous control of multiple hydraulic functions; operator can select speed levels 100% / 50% / 10%
• Optional radio remote for MAC: proportional multi‑axis operation without fixed speed presets
• All Winlet 400 configurations available with either PSAC or MAC operator panel

Documentation and catalogues available

• Winlet 400 brochure
• Winlet 400 catalogue (complete series)
• Winlet main catalogue
• Winlet accessories catalogue

Pictures & Video

• Multiple installation and product images illustrating the Winlet 400TL DHB HS in use and technical drawings (front/profile/load diagram)
• Embedded product video available

Technical specifications

• Model: Winlet 400TL DHB HS
• Lifting capacity: 415 kg
• Boom: double hydraulic boom, 2 × 500 mm
• Hydraulic front sideshift: linear movement (100 mm side shift shown)
• Drive / steering: extra‑wide steering and traction wheels for enhanced stability and off‑road use
• Control options: PSAC (Proportional Single Axis Control) and MAC (Multi Axis Control) with optional proportional radio remote for MAC
• Available documentation: model brochure, Winlet 400 catalogue, Winlet series catalogue and accessories catalogue
